RAD Torque Tools Accessories

Reaction Arms
Sliding Reaction Arms
Custom Reaction Arms
Nose Extensions
Tool Support
Safety Valve
Trigger Guards

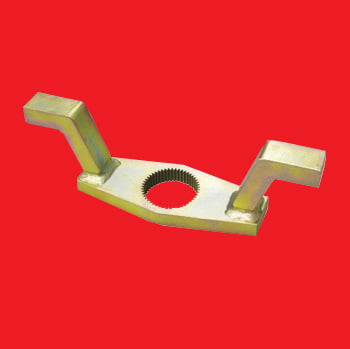

Reaction Arms

Tool Series Standard Angled Angled Deep 90° Standard 90° Deep Double Emded Weldable Blank D/Ended Weldable Blank Retaining Ring
BATTERY SERIES
B-RAD 500/ 500 – 2/ DB-RAD 500 17235 17236 13366 13367 13368 13364 13365 12733
B-RAD 1000/1000 – 2/DB-RAD 1000 17235 17236 13366 13367 13368 11364 13365 12733
B-RAD 1500/1500 – 2/DB-RAD 1500 14213 14214 17375 18480 19094 17888 19093 17367
B-RAD 3000/3000 – 2/DB-RAD 3000 – 2 21482 24814 25981 27231 25437 24813 25016 21474
B-RAD 5000 25286 26118 29422 29425 26119 26120 26121 10032
ELECTRONIC BLU SERIES
E-RAD BLU 700 17235 17236 13366 13367 13368 13364 13365 12733
E-RAD BLU 1500 14213 14214 17375 18480 19094 17888 19093 17367
E-RAD BLU 2500 COMP//2500 COMP 90 Degrees 18863 18864 18250 18251 10516 10513 10448 10509
E-RAD BLU 3000 18497 18498 11531 11534 11533 11530 11532 11350
E-RAD BLU 6000 15375 15788 16368 17643 15790 16260 15789 15367
E-RAD BLU 7500 17239 12885 13508
ELECTRIC SERIES
V-RAD 4 10686 10687 14900 15923 10688 11459 10037 10306
V-RAD 10/DV-RAD 1000 17235 17236 13366 13367 13368 13364 13365 12733
V-RAD 16 10004 10007 14809 15746 10009 10005 10008 10014
V-RAD 23/ V-RAD 23 90 Degrees 18863 18864 18250 18251 10516 10513 10448 10509
DV-RAD 1500 14213 14214 17375 18480 19094 17888 19093 17367
DV-RAD 2500 18863 18864 18250 18251 10516 10513 10448 10509
PNEUMATIC SERIES
RAD 350SL/350SL – 2 10686 10687 14900 15923 10688 11459 10037 10306
RAD 7GX/10GX/10GX – 2 17235 17236 13366 13367 13368 13364 13365 12733
RAD 7GX – R 13512 12902
RAD 15DX/15DX – 2 14213 14214 17375 18480 19094 17888 19093 17367
RAD 15NDX – R 19772 20891 20152 20892 12733
RAD 1800NG/1800NG – 2 10004 10007 14809 15746 10009 10005 10008 10014
RAD 2000 10247 10395 15074 16143 10397 10394 10396 10038
RAD 2000NGX – R 13512 12902
RAD 25GX/25GX – 2 18863 18864 18250 18251 10516 10513 10448 10509
RAD 30DX/30DX – 2 21482 24814 25981 27231 25437 24813 25016 21474
RAD 34GX 18497 18498 11531 11534 11533 11530 11532 11350
RAD 50DX 25286 26118 29422 29425 26119 26120 26121 10032
RAD 60DX 15375 15788 16368 17643 15790 15373 15789 15367
RAD80DX/85GX 17239 13508 12885 13508 13509 13505 13506 11930
RAD 110DX 23776 26157 26158 26159 26160

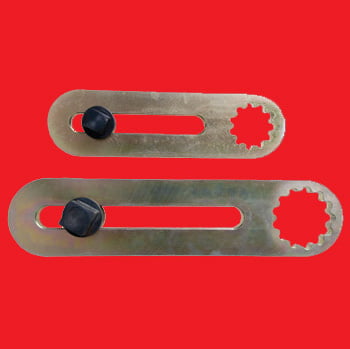

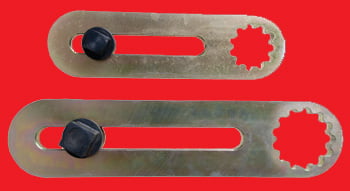

Sliding Reaction Arms

RTS offer a range of sliding reaction arms that ensure perfect reaction every time whilst eliminating pinch points and optimising safety. These reaction arms are perfectly suited to flange assembly and applications with regular bolt pattern arrangements.

Part Number Tool Model Min CTRS Max CTRS
 CRP12818 – 1  RAD 10GX  60mm  180mm
 CRP17328 – 1  RAD  15DX  80mm  250mm
 CRP12377 – 17  RAD 25GX  76mm  255mm
 CRP12356 – 6  RAD 34GX  76mm  178mm
 CRP12356 – 43  RAD 34GX  100mm  178mm
 CRP22238-1  BRAD SELECT 3000  80mm  250mm

Custom Reaction Arms

With full engineering capability, RTS are able to custom design and manufacture a full range of special engineered reaction arms to suit any application. Please contact your local distributor to discuss your requirements for a specific or custom application.

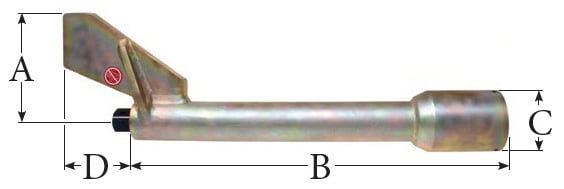

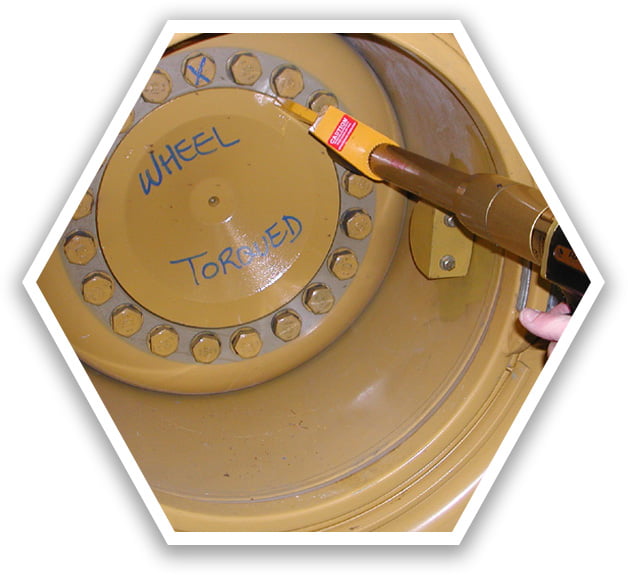

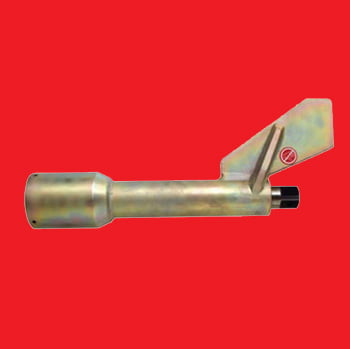

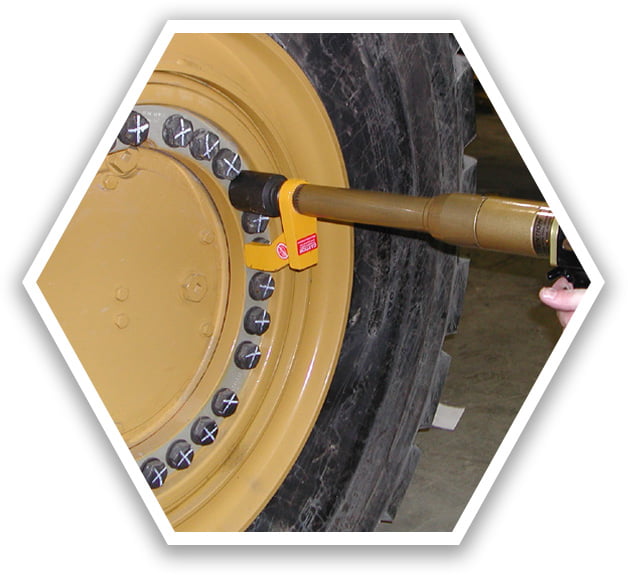

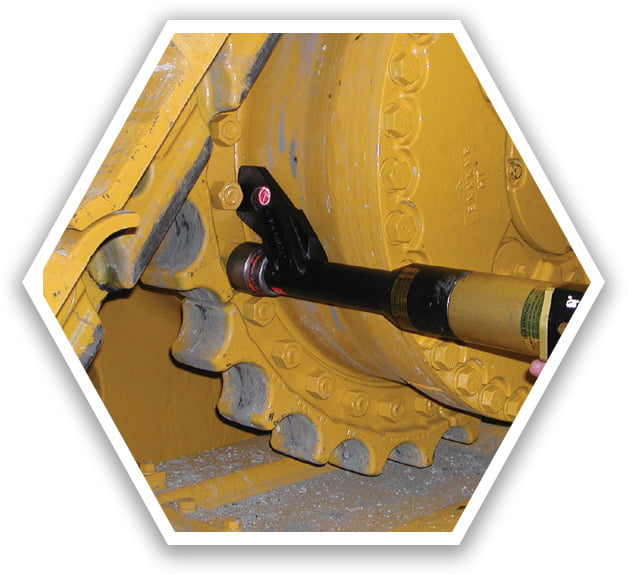

Nose Extensions

RAD Nose Extensions are engineered to enable the use of RAD tools in difficult to access areas where a standard tool

Part No. Tool Model Dimensions (mm)
A B C D
CLASSIC/HIGH SPEED
 10259 RAD 1800NG 12″ NOSE EXTENSION  140  323  72  92
 10257   RAD 1800NG 15″ NOSE EXTENSION  140  406  72  92
 10258   RAD 1800NG 18″ NOSE EXTENSION  140  457  72  92
CLASSIC/HIGH SPEED/UNDERGROUND MINING
 10733  RAD 2000 12″ NOSE EXTENSION  140  330  72  92
 15237  RAD 2000 15″ NOSE EXTENSION  140  410   72  92
 15096  RAD 2000 18″ NOSE EXTENSION  140  470   72  92
 12087  RAD 30 12″ NOSE EXTENSION  140  325   72  92
 10734  RAD 30 15″ NOSE EXTENSION  140  401   72  92
 10735  RAD 30 18″ NOSE EXTENSION  140  478   72  92
DX SERIES/UNDERGROUND MINING
 14195   RAD 10GX 12″ NOSE EXTENSION  N/A  324  63  N/A
 14200   RAD 10GX 15″ NOSE EXTENSION  N/A  400  63  N/A
 14205   RAD 10GX 18″ NOSE EXTENSION  N/A  475   63  N/A
 18185   RAD 15GX 12″ NOSE EXTENSION  N/A  324  70  N/A
 19058   RAD 15GX 15″ NOSE EXTENSION  N/A  400  70  N/A
 19059   RAD 15GX 18″ NOSE EXTENSION  N/A  475  70  N/A
 12096   RAD 25GX 12″ NOSE EXTENSION  N/A  330  72  92
 12061   RAD 25GX 15″ NOSE EXTENSION  N/A  410  72  92
 12097   RAD 25GX 18″ NOSE EXTENSION  N/A  470  72  92
 11750   RAD 34GX 12″ NOSE EXTENSION  N/A  330  80  92
 11751   RAD 34GX 15″ NOSE EXTENSION  N/A  410  80  92
 11752   RAD 34GX 18″ NOSE EXTENSION  N/A  470  80  92

NOTE: All (NX) Extensions are sold excluding reaction arms, for reaction arms please consult your dealer.

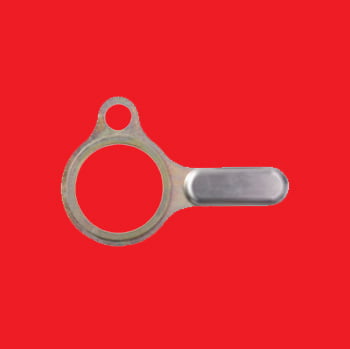

Tool Support

To enable ease of use, RTS offer a range of secondary support handles to facilitate two handed operation of the tool to further increase safety. A range of lifting eyes are also available to allow the suspension of all tool models using a spring balancer. Both secondary handles and lifting eyes clamp positively to the tool whilst still allowing it to rotate through 360°.

To Suit Tool Model Support Handle Lifting Ring Single Combo Double Combo
RAD 350SL/ 7GX/ 10GX 15962 15960 19827
RAD 2000 14953 13679 19954
RAD 15DX 19825 21059
RAD 25GX 15959 14845 19823 19954
RAD 34GX 14491 13680 19821 19956
RAD 30 DX 26751
RAD 50/ 60DX 15956 12729 26674 22384
RAD 80DX/ 85GX 16221 15504 22931 25195

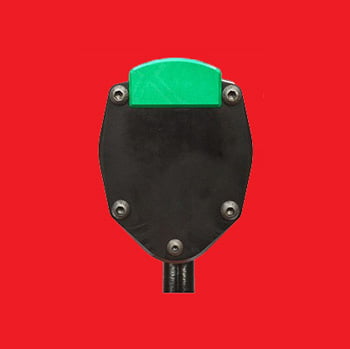

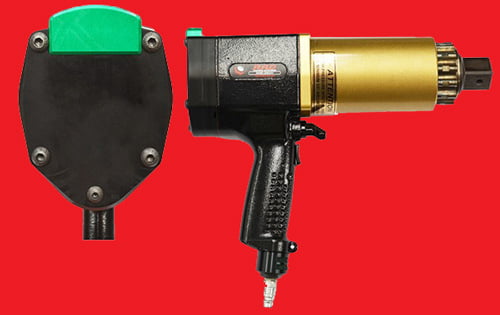

Safety Valve

The Operator Safety Valve “OSV” is a retro fit accessory that can be fitted to any pneumatic RAD tool and is guaranteed to keep the operators hands away from the reaction arm which equates for 99% of pinch point injuries. Once the “OSV” is fitted to the tool, the operator must only operate the unit using both hands. One hand on the conventional trigger and the other on the OSV secondary trigger, located at the back of the tool ensuring both hands are away from the reaction arm.

Part Number To Suit Tool Model
OSV – 120 RAD 350SL / 7GX-R / 7GX / 10GX / 15DX
OSV – 180 RAD 1800NG / 1800NGX-R / 2000 / 25GX / 30DX
OSV – 200 RAD 34GX/ 50 / 50DX / 60DX / 80DX / 85GX

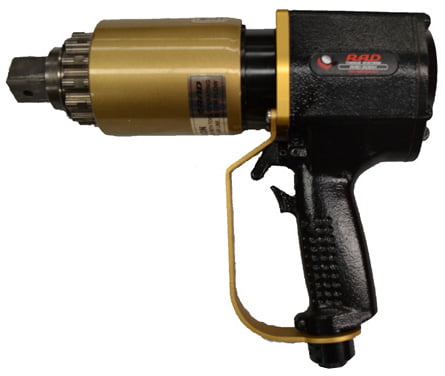

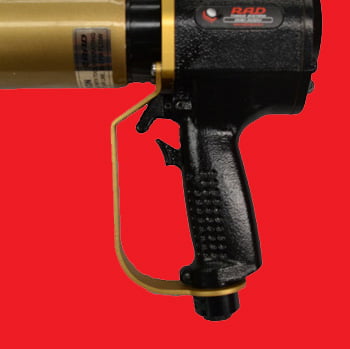

Trigger Guards

Designed to protect the operators hand whilst in use and eliminate the risk of potentially “bumping” the trigger leading to accidentally operating the tool whilst aligning the tool on the job. The new range of custom trigger guards (CTG) are available as a retro fit kit that can be fitted by the end user or alternatively ask your authorised dealer about having one fitted when your tool is next in for service and calibration.

Part Number To Suit Tool Number
CTG – 120 RAD 350SL/ 7GX-R / 7GX / 10GX / 15DX
CTG – 180 RAD 1800NG/ 1800NGX-R / 2000 / 25GX / 30DX
CTG – 200 RAD 34GX / 50
CTG – 85 RAD 60DX / 85GX
