RTS HYDRAULIC TORQUE WRENCHES

RTS Hydraulic Torque Wrenches

Our Hydraulic Torque Wrenches are all manufactured and designed to meet the most demanding applications. With a comprehensive range of square drive and hex link style tools available, coupled with some of the best hydraulic pumps on the market. RTS is able to meet your needs and exceed your expectations with torque ranges from 80 – 51,000 Ft.lbs – 100 – 66,000 Nm.

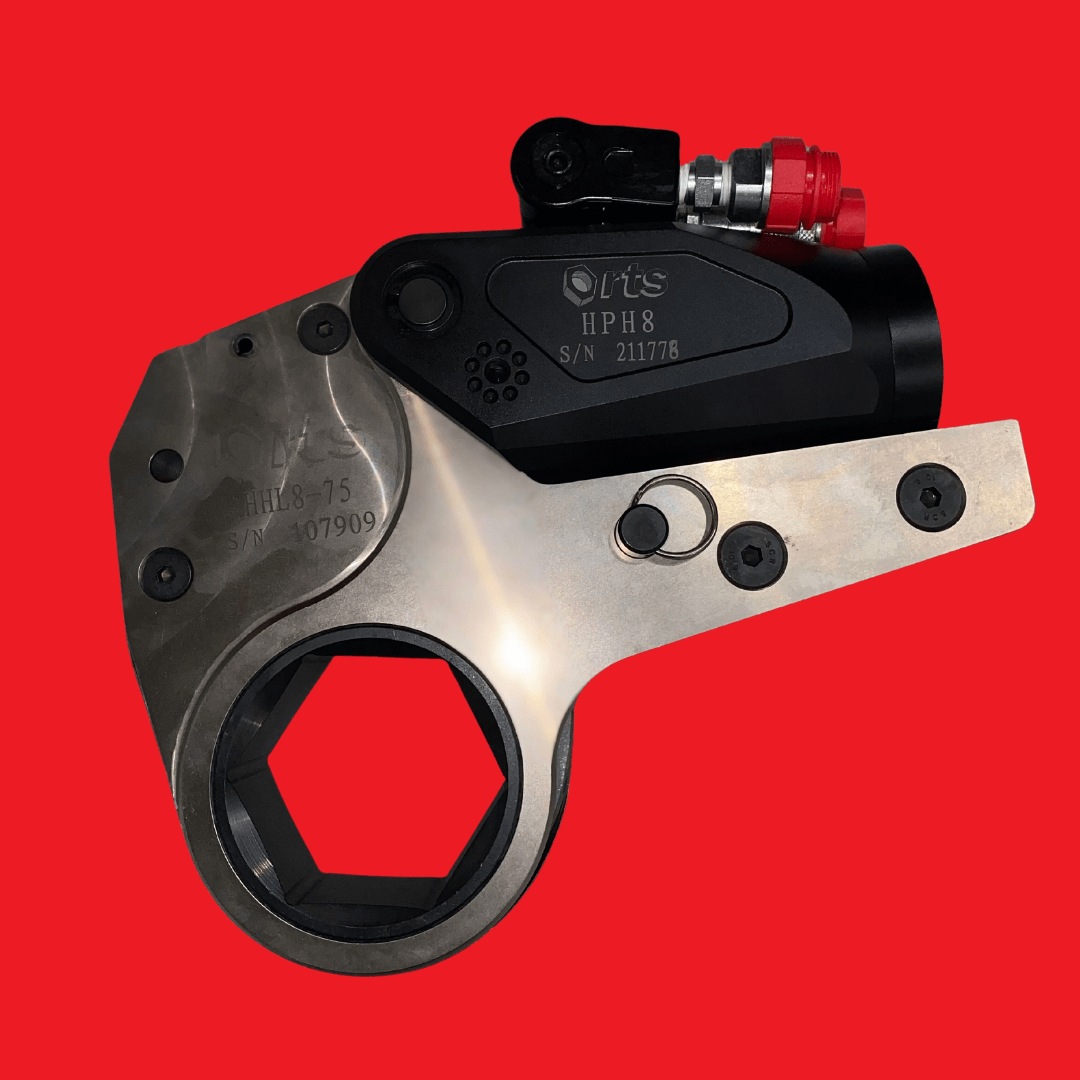

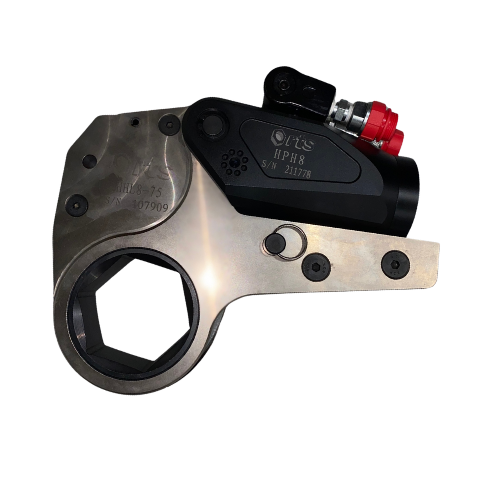

RTS Hex Cassette Torque Tools

The versatile RTS Hex Drive Series supports an extensive range of interchangeable hexagon ratchet links that deliver a torque range of 150 ft.lbs – 30,000 ft.lbs. They deliver precision torque during the bolting process and maximum torque during bolt breakout. Ratchet Links are also interchangeable with some other major brand tools.

Standard Features

Compact/Lightweight Design
360 Hose Swivel Assembly
Anti-Windup Torque Release Lever
Interchangeable cassettes available in both metric and imperial
Ratchet Links are interchangeable with some other major brands
Best in industry power to weight ratio
1 Year Warranty

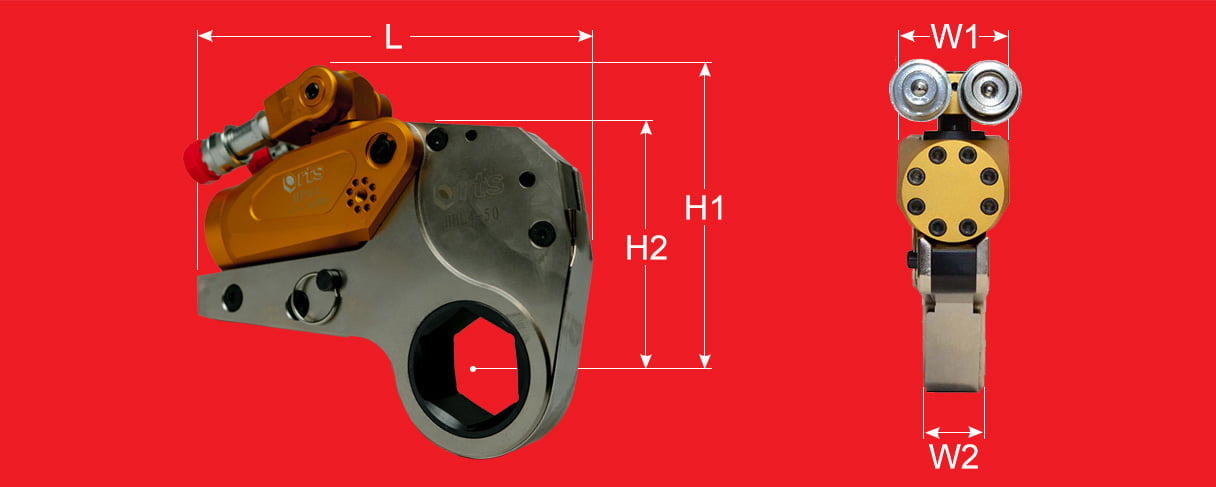

Model	Hex Size	Torque		Weight	Dimensions (mm)
Model	mm	Nm	Ft.Lbs	Kg	L	H1	H2	W1	W2	A	R
RTS-HHL2**	19 – 55 60	232 – 2328 241 – 2414	171 – 1717 178 – 1781	1.6 1.7	196.4	125.9 128.5	102.3 105	32	51	9.9 – 16 10.9	26.9 – 42.9 46
RTS-HHL4**	34 – 36 41 46 – 65 70 – 80	585 – 2510 585 – 5021 585 – 5858 647 – 6474	432 – 1851 432 – 3703 432 – 4321 477 – 4775	4.4 4.6	245 246	177 187	135.7 145.7	42	66	14 – 16 15	36.1 – 53.1 55.9 – 61
RTS-HHL8**	41 – 95 100 – 105	1094 – 10941 1177 – 11774	807 – 8070 868 – 8684	8 8.4	300 303.8	207 216.2	169 178.1	53	83	16 – 22.1 17	46 – 59.9 74.9 – 78
RTS-HHL14**	50 – 117	1852 – 18499	1366 – 13644	11.6	361	239	204	64	99	19.1 – 31	59.9 – 87.2
RTS-HHL30**	110 – 155 160 – 175	4188 – 41882 4459 – 44593	3089 – 30891 3289 – 32890	29 30	430 441	303 315	272 285	85	131	24.9 – 29 26.9 – 36.1	77 – 115.1 121.9 – 128

**Requires Link Size, for example RTS-HHL436 = 36 Hex size for the tool

RTS Hex Power Head
Part Number	Drive Cylinder Kg	Cassette Suitable for Power Head
RTS HPH2	1.0	RTS HHL2
RTS HPH4	2.0	RTS HHL4
RTS HPH8	3.3	RTS HHL8
RTS HPH14	5.5	RTS HHL14
RTS HPH30	11.4	RTS HHL30

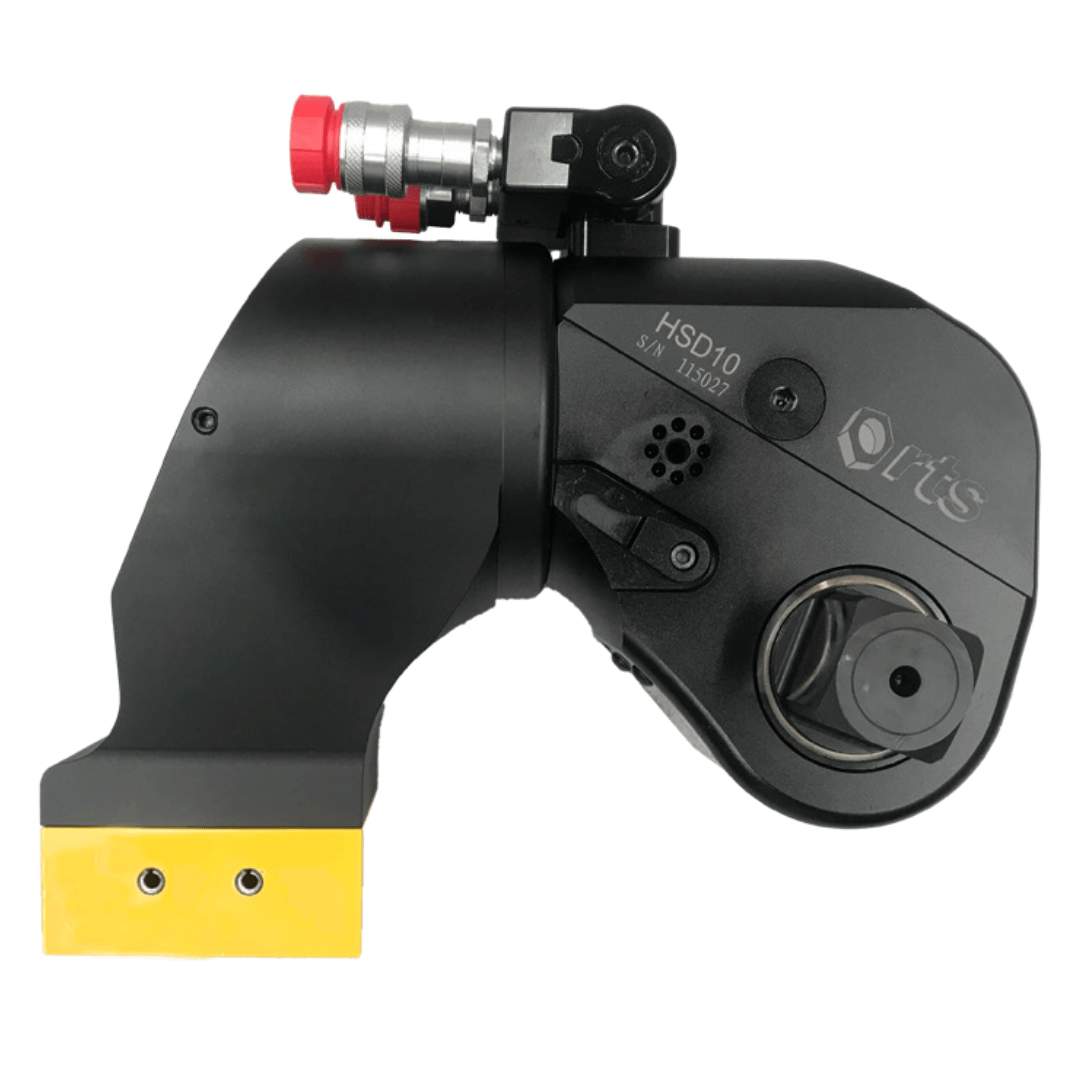

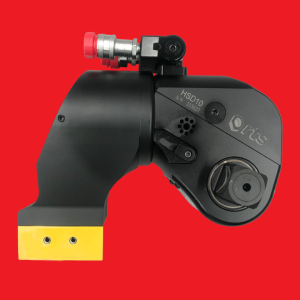

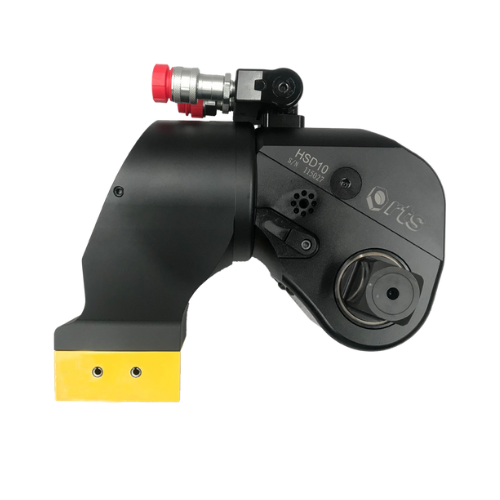

RTS Square Drive Torque Tools

The Square Drive Torque Wrenches take on the toughest bolting jobs without missing a beat. They deliver precision torque during bolt makeup and maximum torque during bolt breakout. They feature a compact design, constructed of aluminum – titanium alloy and super high-strength steel alloy for increased strength and durability while minimizing weight. A complete range of models are available with torques ranging from 82 ft-lbs. to 52,500 ft-lbs.

Standard Features

Compact Design
Aluminum/Titanium & Steel Alloy construction
360° Hose Swivel Assembly
1 Year Warranty
Anti-Jam Torque Release Lever
Best in industry power-to-weight ratio

Model	Torque		Square Drive	Weight	Dimensions (mm)
Model	Nm	Ft.Ibs	Square Drive	Kg	L1	L2	H1	H2	H3	H4	R1	R2
RTS-HSD1	182 – 1822	134 – 1344	¾”	2.5	135.89	185.93	50.04	80.01	97.54	131.06	25.91	99.06
RTS-HSD3	445 – 4444	328 – 3278	1”	5.0	169.93	244.09	68.07	104.90	128.02	205.99	34.04	135.89
RTS-HSD5	742 – 7416	547 – 5470	1½”	8.2	203.96	284.99	80.01	132.08	151.89	230.12	40.89	150.11
RTS-HSD8	1062 – 10617	783 – 7831	1½”	10.9	219.96	312.93	89.92	141.99	166.88	244.09	46.99	175.01
RTS-HSD10	1528 – 15283	1127 – 11272	1½”	15.0	245.11	352.04	103.12	154.94	180.09	260.10	51.05	182.63
RTS-HSD20	2626 – 26262	1937 – 19370	2½”	26.3	303.02	450.09	119.89	188.98	222.00	299.97	60.96	255.02
RTS-HSD25	3421 – 34202	2523 – 25226	2½”	34.9	323.09	401.07	136.91	202.95	246.89	296.93	66.04	198.88
RTS-HSD35	4793 – 47934	3535 – 35354	2½”	49.9	372.62	465.58	152.91	217.93	281.94	331.98	76.96	242.06

We can help you find the right tool!

Check out our Torque Tool Finder, or give us a call today and we’ll get you ‘torquing’!
