Features:
- Multiple models of electric torque wrenches can be used in combination with one controller
- Bluetooth® connectivity with RAD Smart Socket™ for transducer verified joint calibration
- Highly advanced data logging and tool management features
- Military grade single cable and connector system
- Available in a 90-degree gearbox
Torque Range: 100 – 11,000 ft. lbs. (135 – 15,000 Nm)
Electronic Torque Wrench with Cutting-Edge Technology for Complex Bolting
The E-RAD BLU series delivers exceptional precision for high-torque assembly, achieving accuracy within ±2.8% of the target. This advanced electronic pistol-grip torque wrench combines RAD’s renowned gearbox design with AC Servo motor technology, reducing bolting time by up to 300% compared to standard hydraulic wrenches.
Designed for challenging bolting tasks, the E-RAD BLU supports torque and angle measurement, data collection, and advanced bolting control that integrates seamlessly with your tool management system. It also features a console module with a clear digital display for easy monitoring.

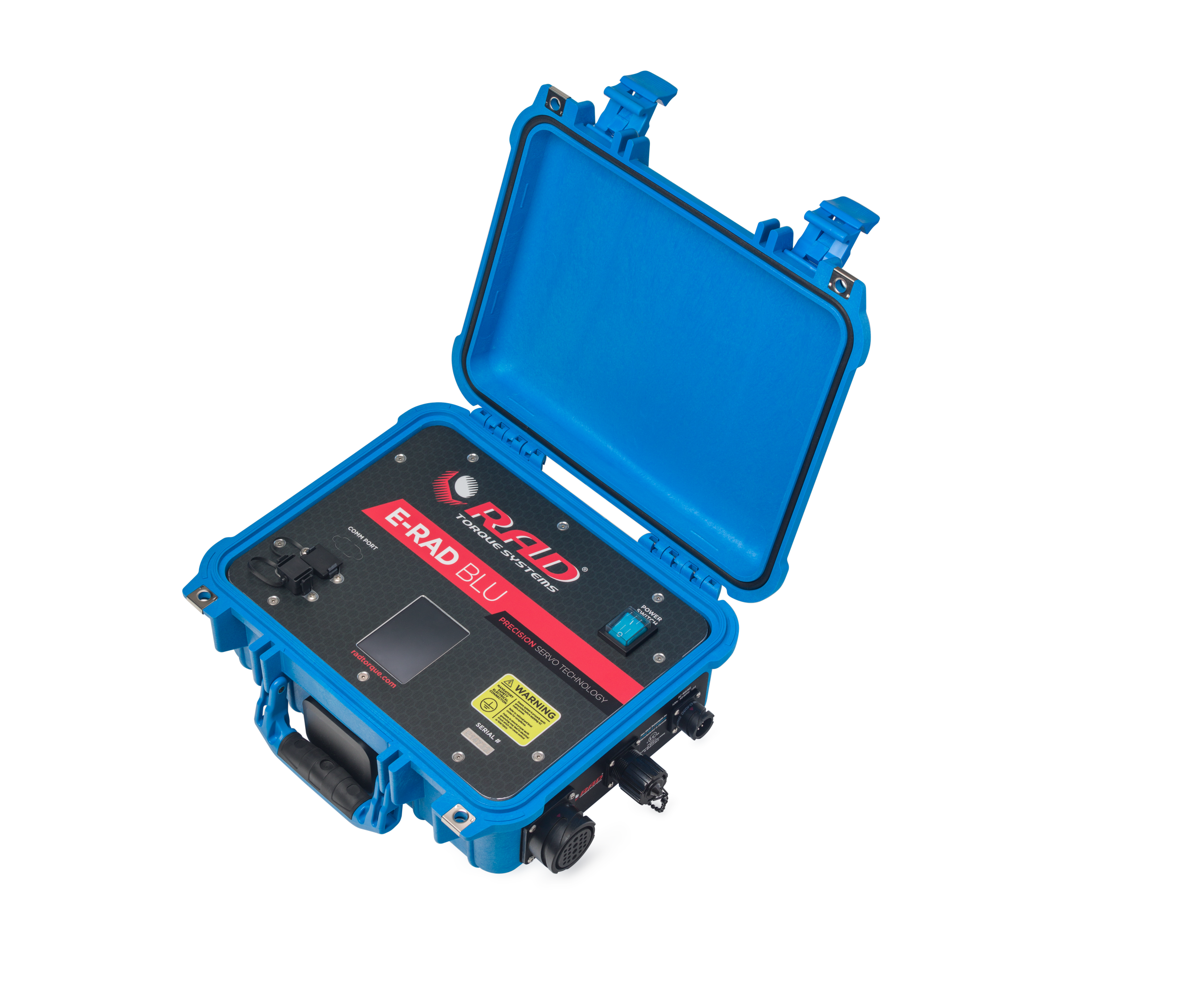

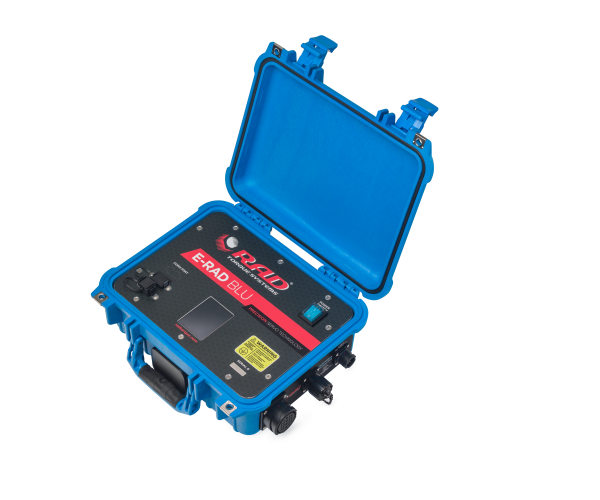

E-RAD BLU Touch Control Case
Every E-RAD BLU precision electric torque wrench includes a Touch Control Case, allowing torque and angle adjustments in single-digit increments. The bright, easy-to-read touchscreen delivers essential data on-site while operating quietly at just 75 dB.
Product overview
Product overview

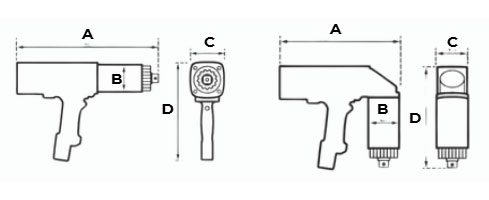

| Part No. | Imperial Tool Model | Sq Dr | Torque (Ft.lbs) | Torque (NM) | Speed 120V | Speed 130V | Weight Kg | Noise Level Dba | Dim. A | Dim. B | Dim. C | Dim. D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
21980

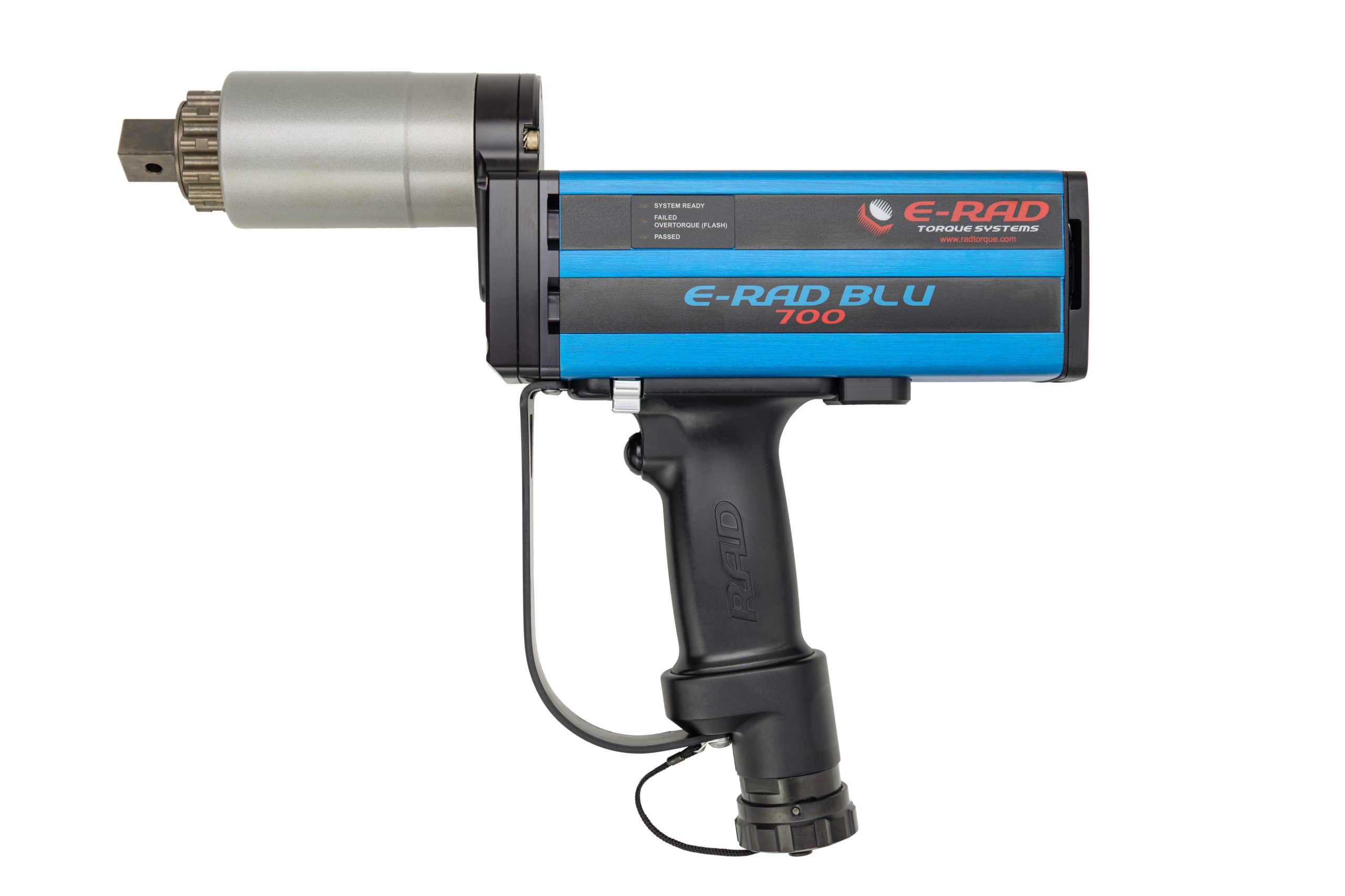

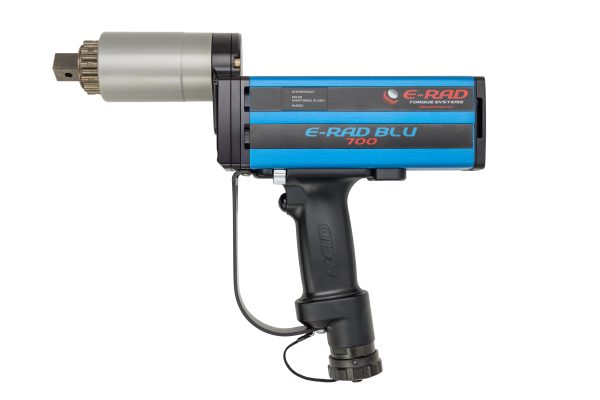

| E-RAD BLU 700 | ¾” | 100 - 700 | 135 - 950 | 15 | 30 | 5.5 | 75 | 340 | 65 | 78 | 275 |
|
24161
| E-RAD BLU 1500 | 1” | 200 - 1,500 | 270 - 2,000 | 8 | 16 | 5.9 | 75 | 337 | 69 | 78 | 275 |
|
21581
| E-RAD BLU 2500 COMP | 1” | 250 - 2,500 | 340 - 3,400 | 4.9 | 10 | 7.6 | 75 | 380 | 76 | 78 | 275 |
|
24221
| E-RAD BLU 2500 COMP-90 DEGREE | 1” | 250 - 2,500 | 340 - 3,400 | 6 | 12 | 8.3 | 75 | 210 | 76 | 78 | 300 |
|
21982
| E-RAD BLU 3000 | 1” | 500 - 3,000 | 675 - 4,000 | 4.1 | 8.5 | 11 | 75 | 430 | 86 | 88 | 287 |
|
21983

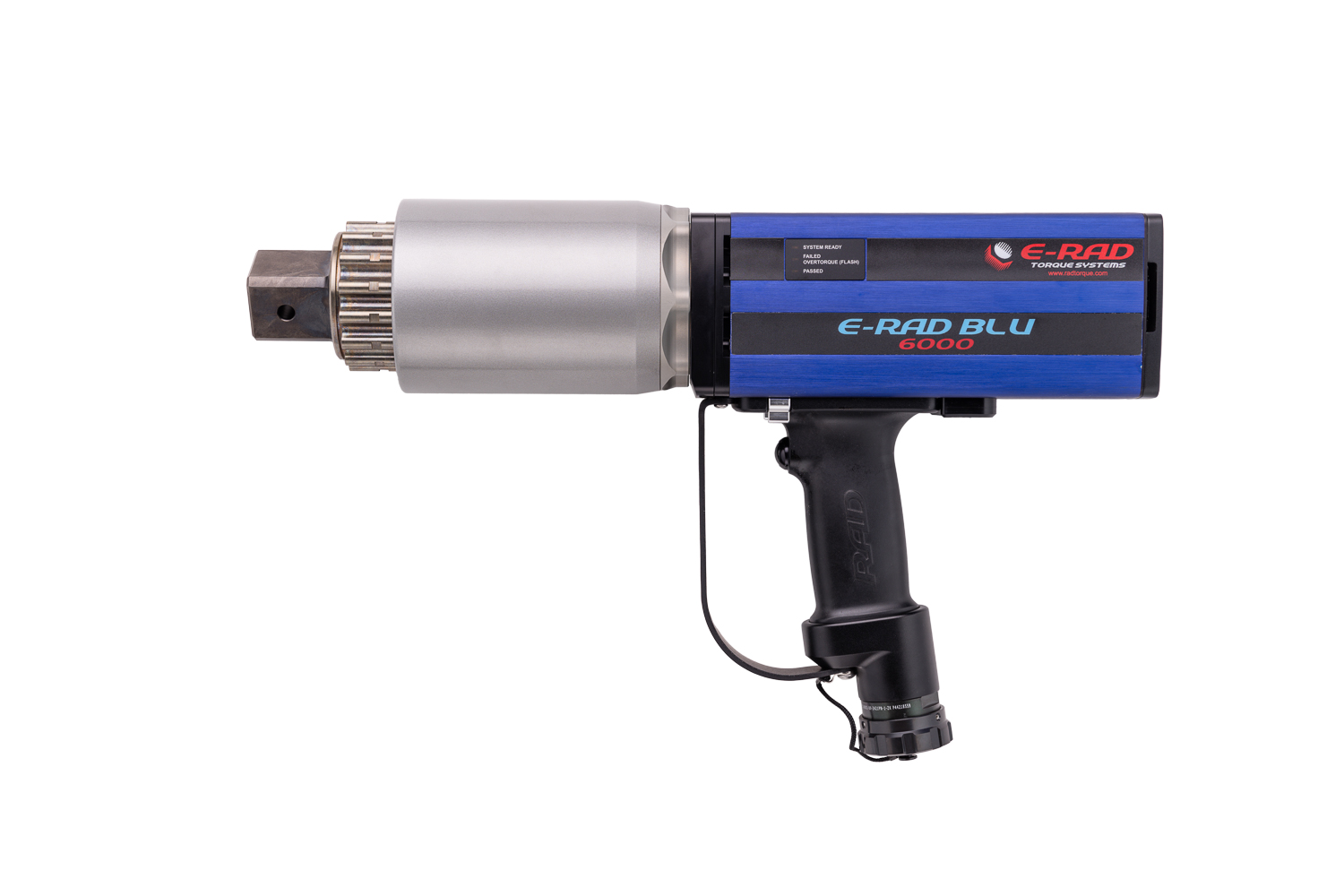

| E-RAD BLU 6000 | 1½” | 1,500 - 6,000 | 2,000 - 8,000 | 2.1 | 4.5 | 13.5 | 75 | 419 | 100 | 100 | 287 |
|
21984
| E-RAD BLU 7500 | 1½” | 1,500 - 7,500 | 2,000 - 8,000 | 1.5 | 3 | 15 | 75 | 432 | 105 | 105 | 287 |
|
24234

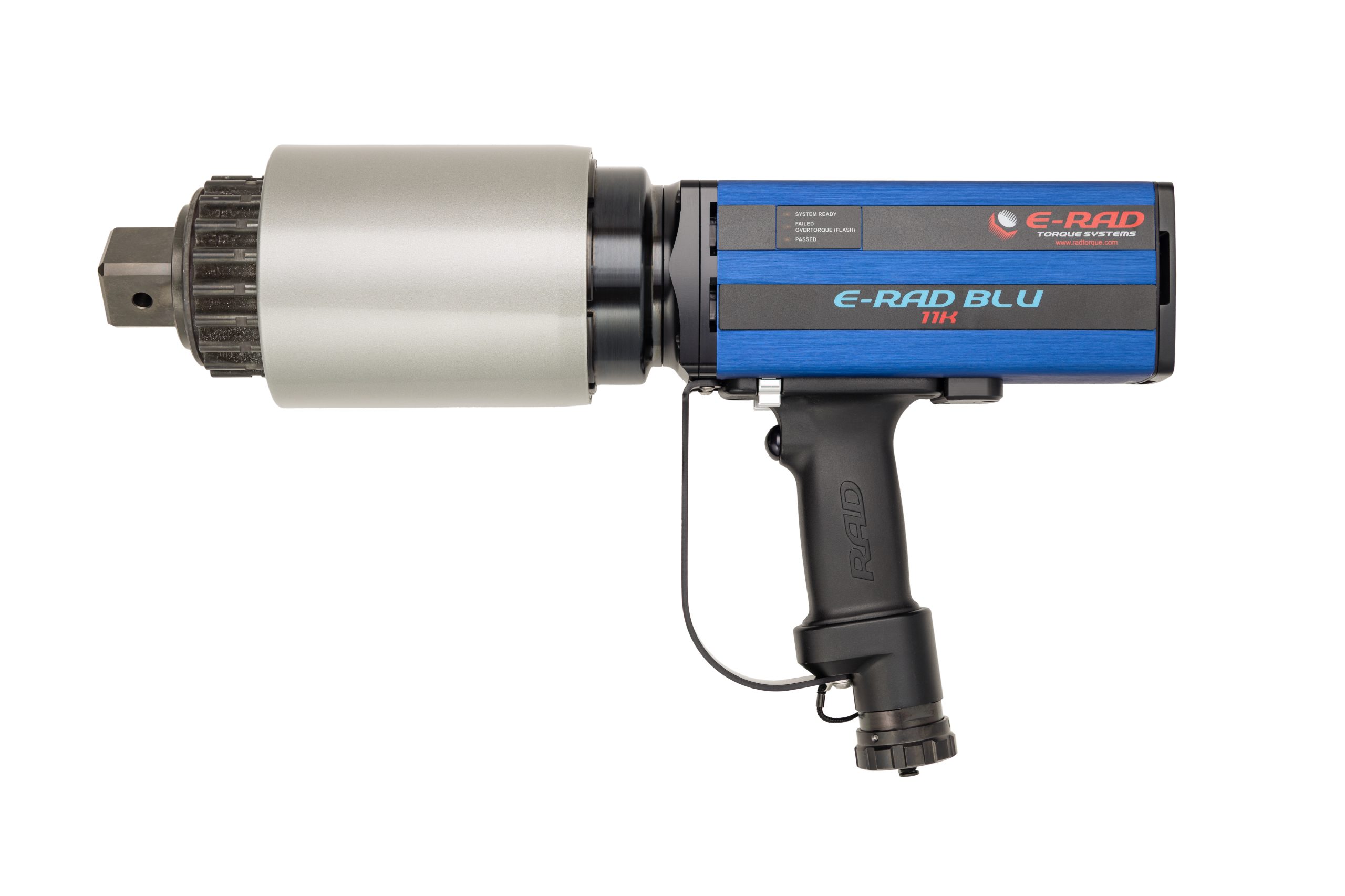

| E-RAD BLU 11K | 1½” | 3,000 - 11,000 | 4,000 - 15,000 | 1.2 | 2.3 | 20 | 75 | 465 | 127 | 127 | 287 |
