Key Features:
- Brushless DC motor for enhanced durability and precision
- Redesigned anti-fatigue trigger switch for comfortable operation
- Standard handguard for operator safety

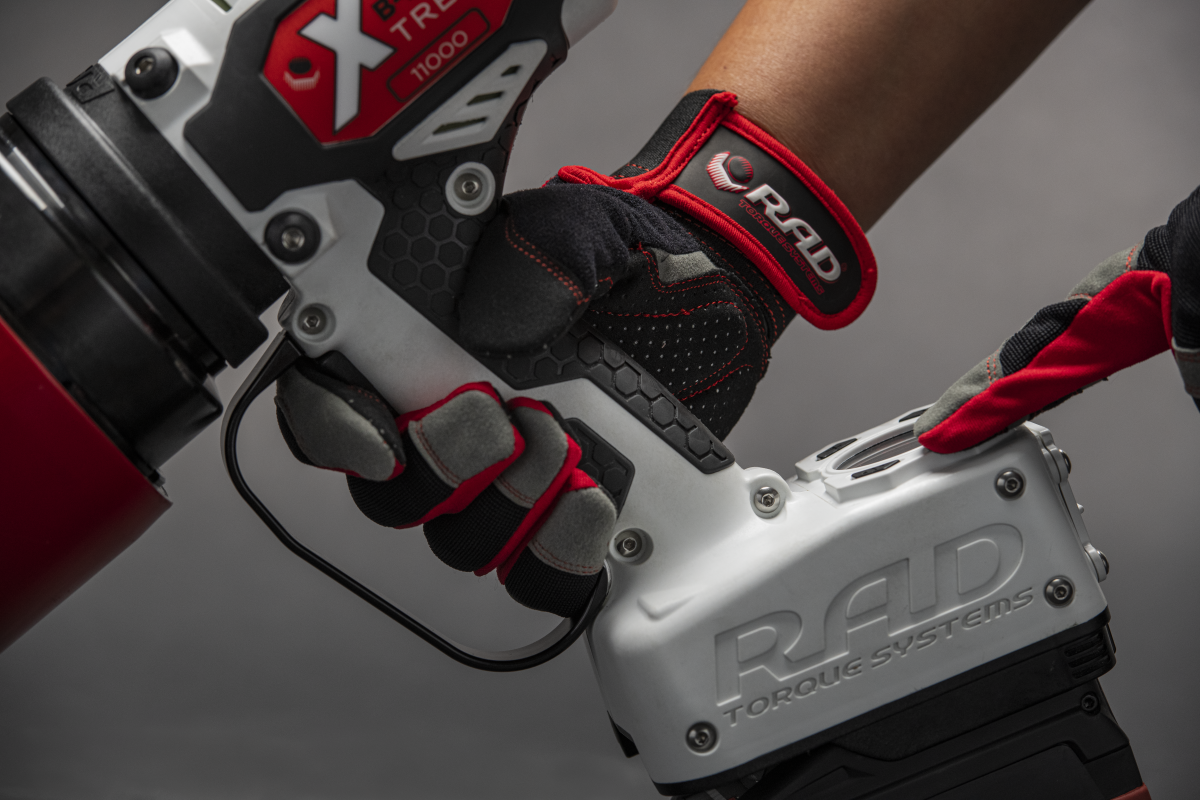

- Two-hand start option

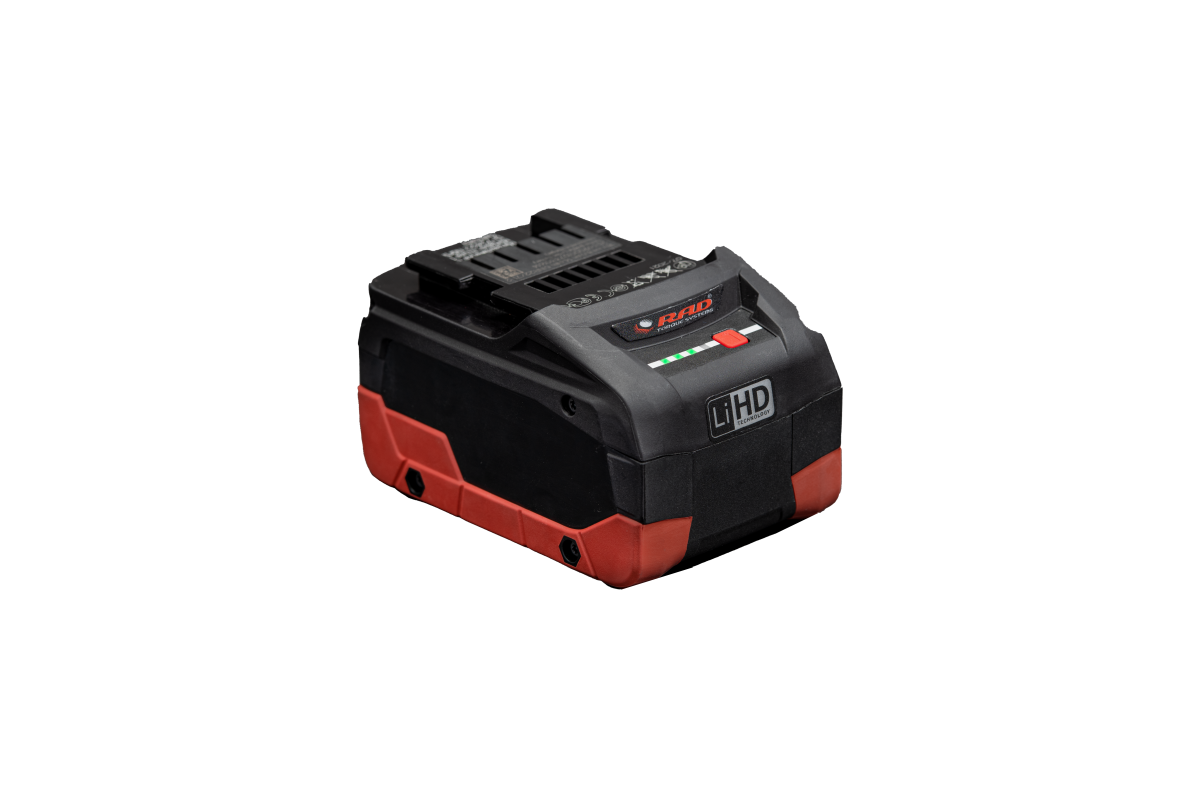

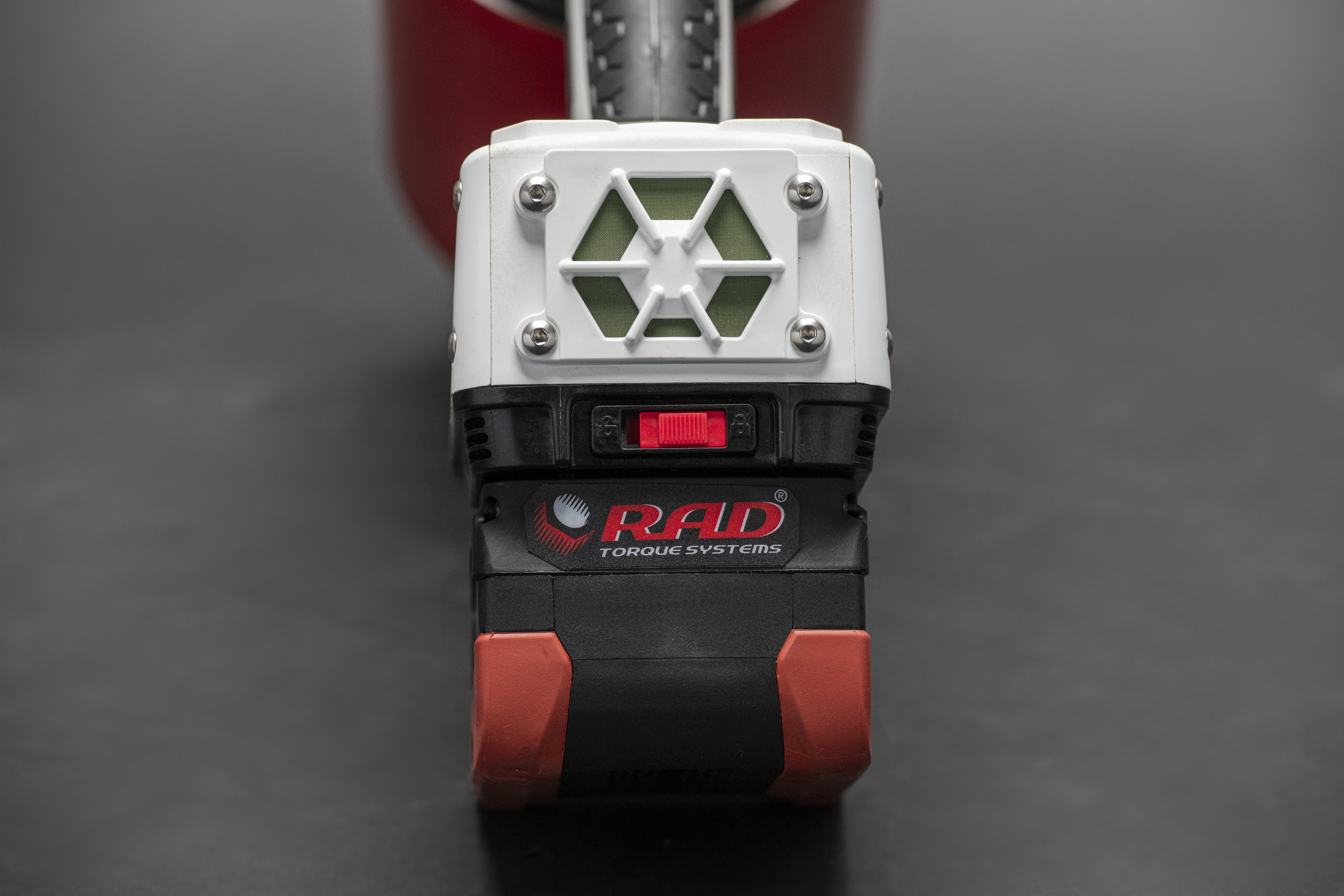

- Latch lock secures the battery even at height

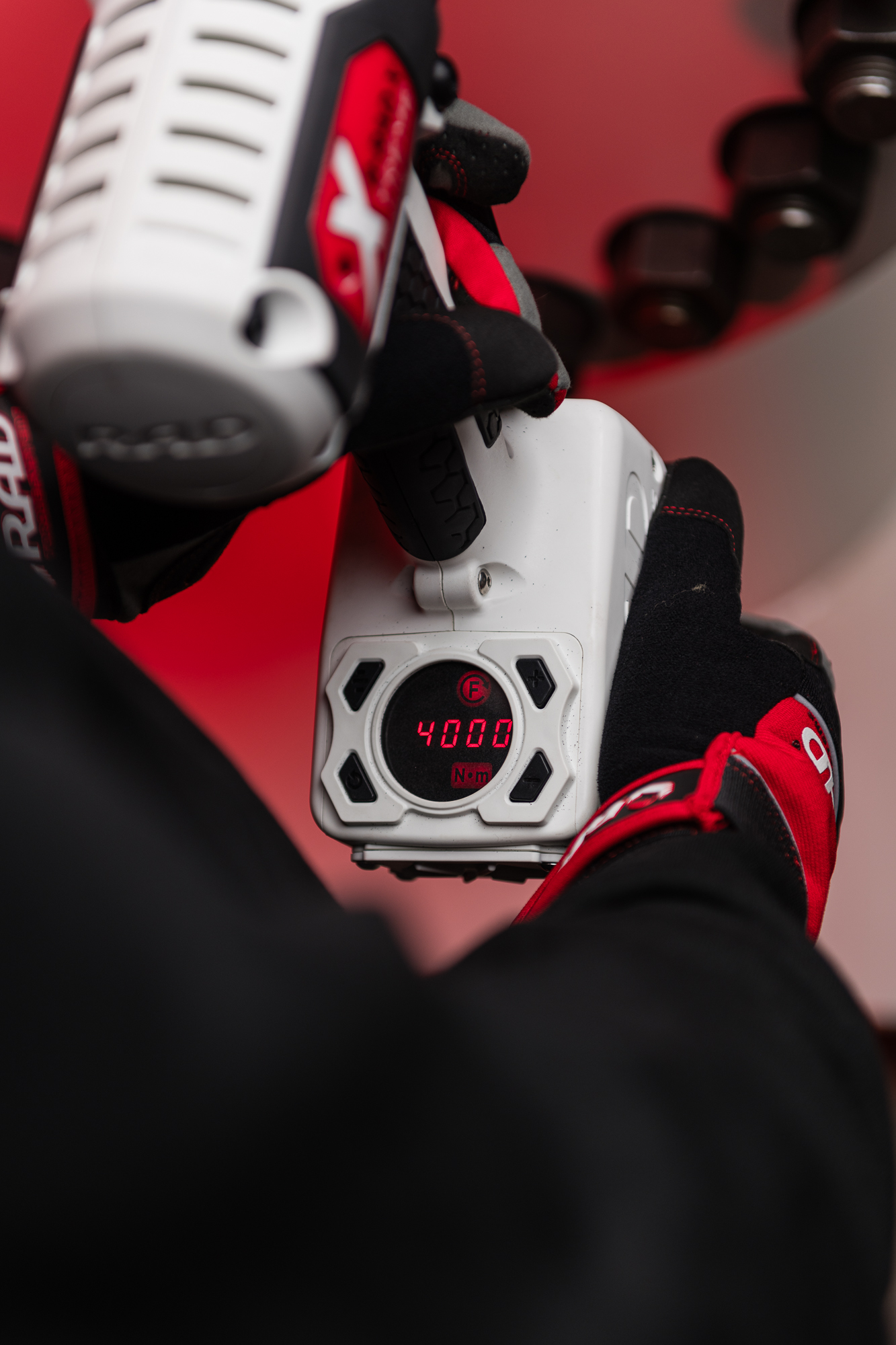

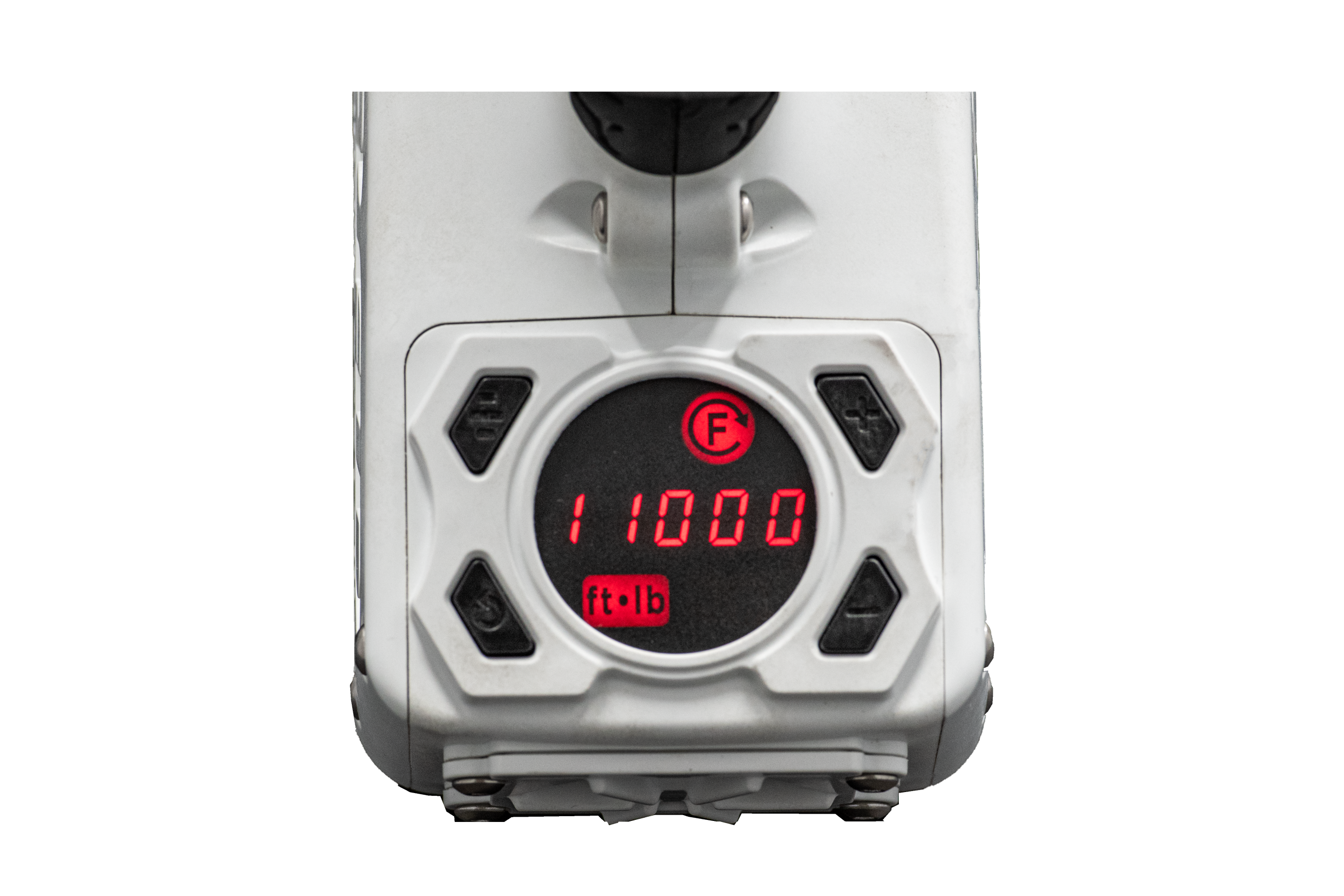

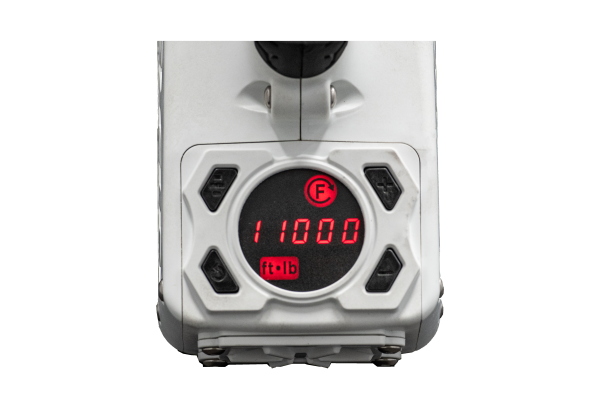

- Four-button interface with high-contrast LED display for operational feedback
- Accuracy: ±4% of target
- ATEX Approved & NFPA 70 NEC Certified Tools – Why they matter!
Torque Range: 250–11,000 ft-lbs (340–15,000 Nm)
The World’s Most Powerful Battery Torque Wrench
The B-RAD Xtreme (B-RAD X) sets a new standard in battery-powered torque tools, offering an unprecedented torque capacity of up to 11,000 ft-lbs (15,000 Nm). Part of RAD Torque Systems’ next-generation battery tool series, it combines power, precision, and safety to tackle the most demanding bolting applications.
The B-RAD X has received international recognition, winning the 2024 Bronze Edison Award in Commercial Technology: Engineering & Manufacturing Tools and the 2024 Pro Tool Innovation Award for Auto & Metal – Wrenches.
Product overview
Product overview
B-RAD X 3000 NOW AVAILABLE

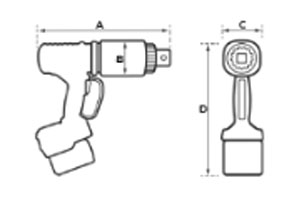

| Part No. | Imperial Tool Model | Sq Dr | Torque (Ft.lbs) | Torque (NM) | Speed RPM | Weight Kg | Noise Level Dba | Dim. A | Dim. B | Dim. C | Dim. D |
|---|---|---|---|---|---|---|---|---|---|---|---|
30983
| B-RAD X 3000 | 1" | 250 - 3,000 | 340 - 4,000 | 3.9 | 7.9 | 87 | 298 | 83 | 89 | 349 |
|
30656
| B-RAD X 5000 | 1 1/2" | 500 - 5,000 | 700 - 7,000 | 2.4 | 10.5 | 87 | 318 | 95 | 95 | 362 |
|
30658
| B-RAD X 8000 | 1 1/2" | 740 - 8,000 | 1,000 - 10,850 | 1.7 | 13.8 | 87 | 349 | 108 | 108 | 369 |
|
30660
| B-RAD X 11K | 1 1/2" | 1,100 - 11,000 | 1,500 - 15,000 | 1.2 | 19.3 | 87 | 387 | 127 | 127 | 375 |
