RAD Battery DB-RAD Series
RAD Battery DB-RAD Series
The ultimate in power to weight ratio
RAD Battery DB-RAD Series
RAD Battery DB-RAD Series
Key Features:
- Programmable preset torque settings
- Advanced 18V Lithium-ion battery technology
- High accuracy of ±5% with repeatability of ±2%
- Automatic 2-speed gearbox
- Patented design
Torque Range: 50–3,000 ft-lbs (70–4,000 Nm)
Cordless Digital Torque Wrench with Enhanced Features

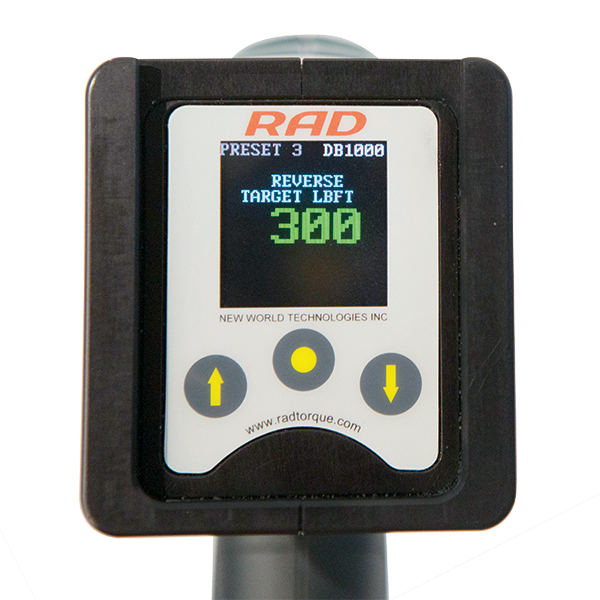

The Digital B-RAD (DB-RAD) is the world’s first cordless digital torque wrench with Lithium-ion battery power. Its patented technology includes a digital display with single-increment torque adjustments and optional angle measurement.
Product overview
Product overview

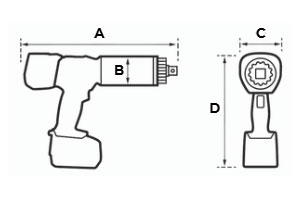

| Part No. | Imperial Tool Model | Sq Dr | Torque (Ft.lbs) | Torque (NM) | Speed RPM | Weight Kg | Noise Level Dba | Dim. A | Dim. B | Dim. C | Dim. D |
|---|---|---|---|---|---|---|---|---|---|---|---|
21779-A
| DB-RAD 500-2 | ¾” | 50 - 500 | 70 - 700 | 59 | 5 | 80 | 321 | 63 | 63 | 279 |
|
21783-A
| DB-RAD 1000-2 | ¾” | 100 - 1,000 | 140 - 1,400 | 19 | 5.2 | 80 | 330 | 63 | 63 | 279 |
|
21787-A
| DB-RAD 1500-2 | 1” | 150 - 1,500 | 200 - 2,000 | 17 | 5.3 | 80 | 330 | 68 | 68 | 279 |
|
24965-A
| DB-RAD 3000-2 | 1” | 300 - 3,000 | 400 - 4,000 | 13 | 7.1 | 80 | 398 | 81 | 81 | 279 |
