Torque Wrench Calibration System – High Accuracy + Repeatability and Convenient Reading.
The Large Calibration Systems are Smart Socket™ connected systems.
RAD Calibration Systems are classified to BS 7882:2008 as Class 1 or better for the primary range (+/- 0.5% of reading from 20% to 100% of full scale). Each system comes fully calibrated and traceable to ISO 17025, ensuring the highest measurement of quality.
Backward compatible with previous-generation RAD calibration benches.
Features:
- 4340-material bolt, heat-treated for unparalleled strength and durability

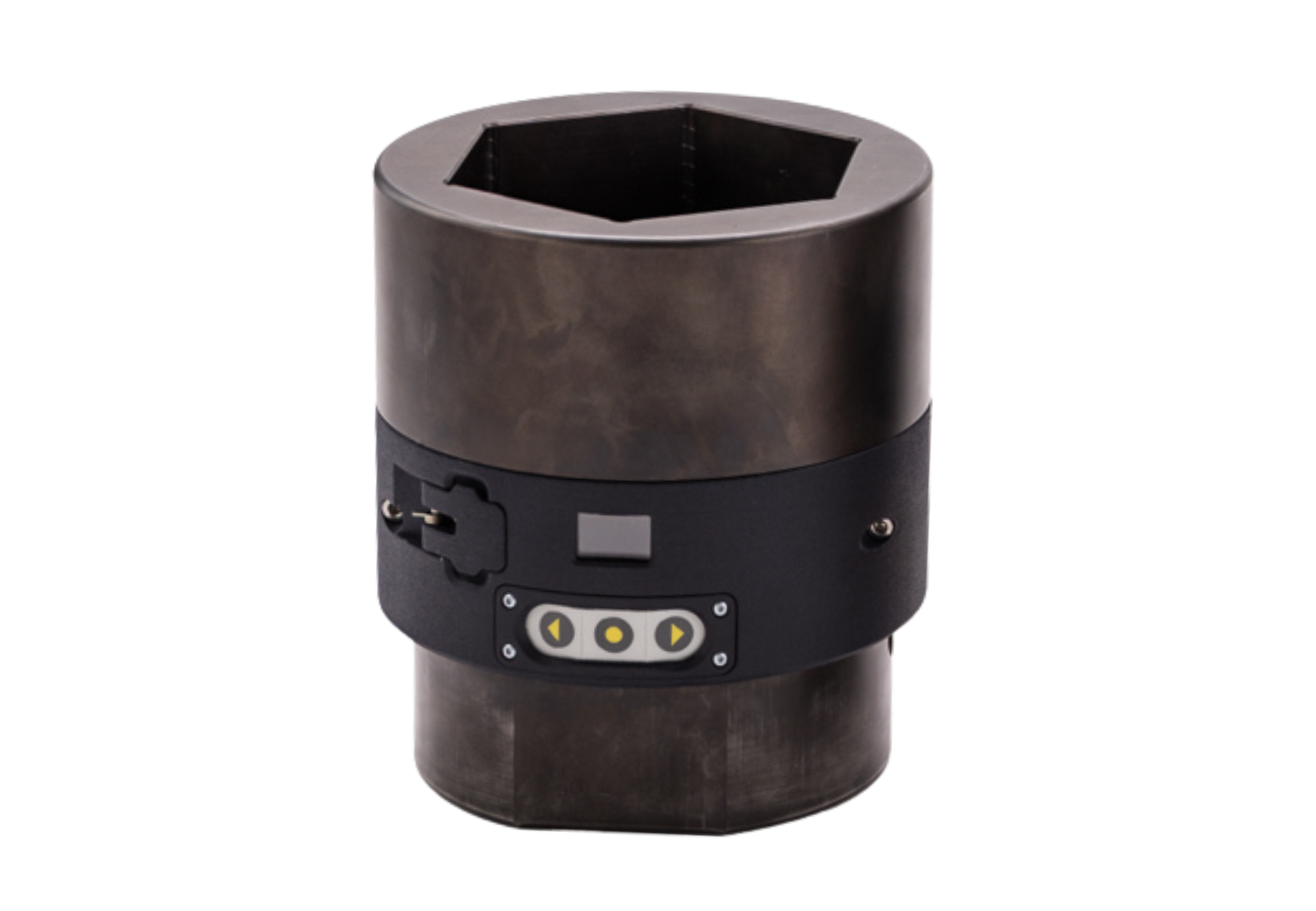

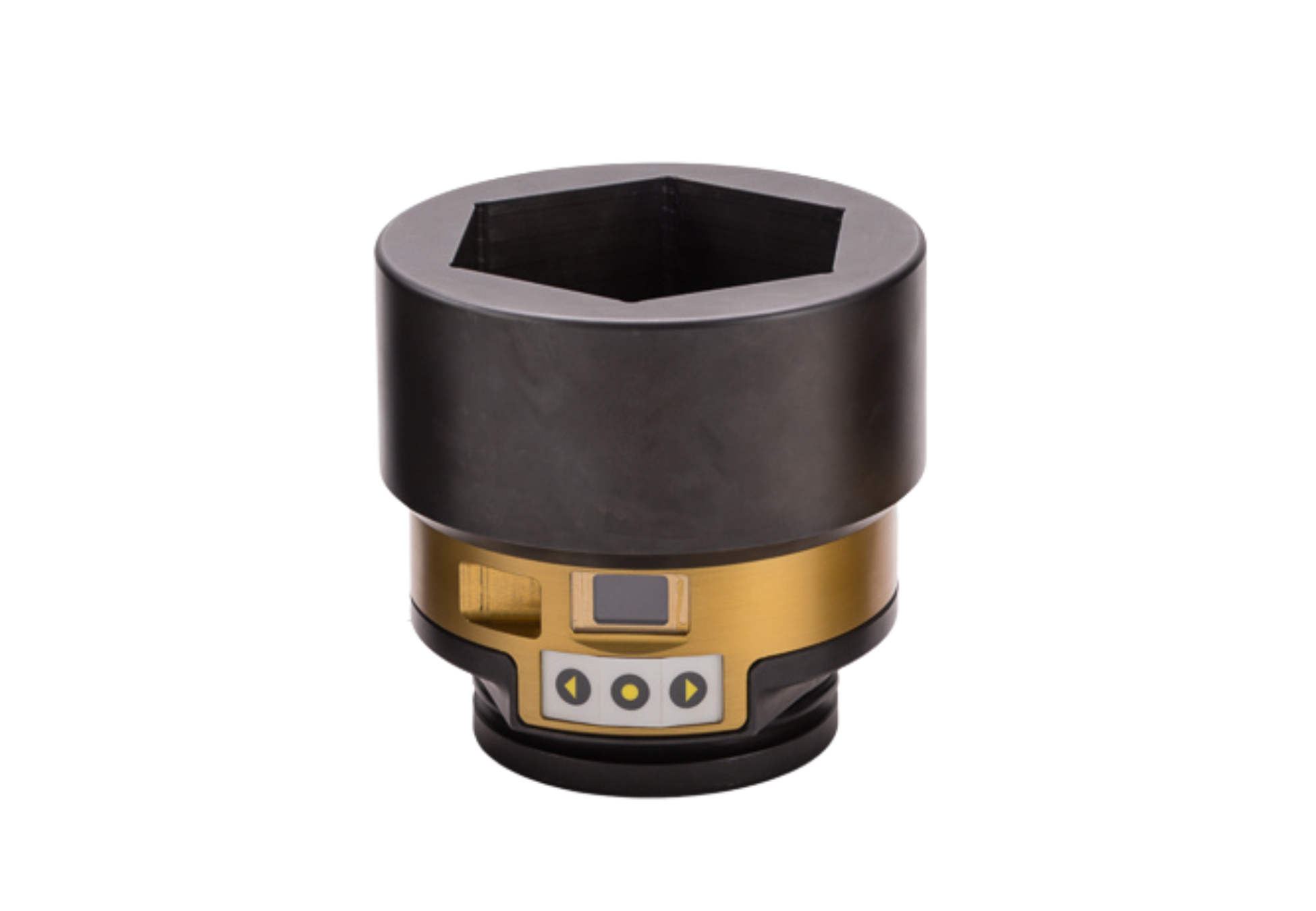

- Optional 12K or 18K* Smart Sockets, delivering accurate data logging for all your calibration needs
- Secure shipping crate to protect your investment
Torque Range: 600 – 18000 ft. lbs. (815 – 24404 Nm)
Customers wishing to test or verify their equipment that requires more of a simulation and dynamic test have the option of our RCA! Having this on-site-test equipment provides total piece of mind and quality assurance to customers using dynamic torque tools on a daily basis. Calibrated to ISO17025 International Standards the analyzers form part of a Total Quality System giving users and their customers total traceability. The range of RCA Tool Test Stands are designed specifically to test the torque output of all Pneumatic Torque Tools.
Disclaimer: 18k Large Calibration System Must be used with a deep reaction arm.
Product overview
Product overview

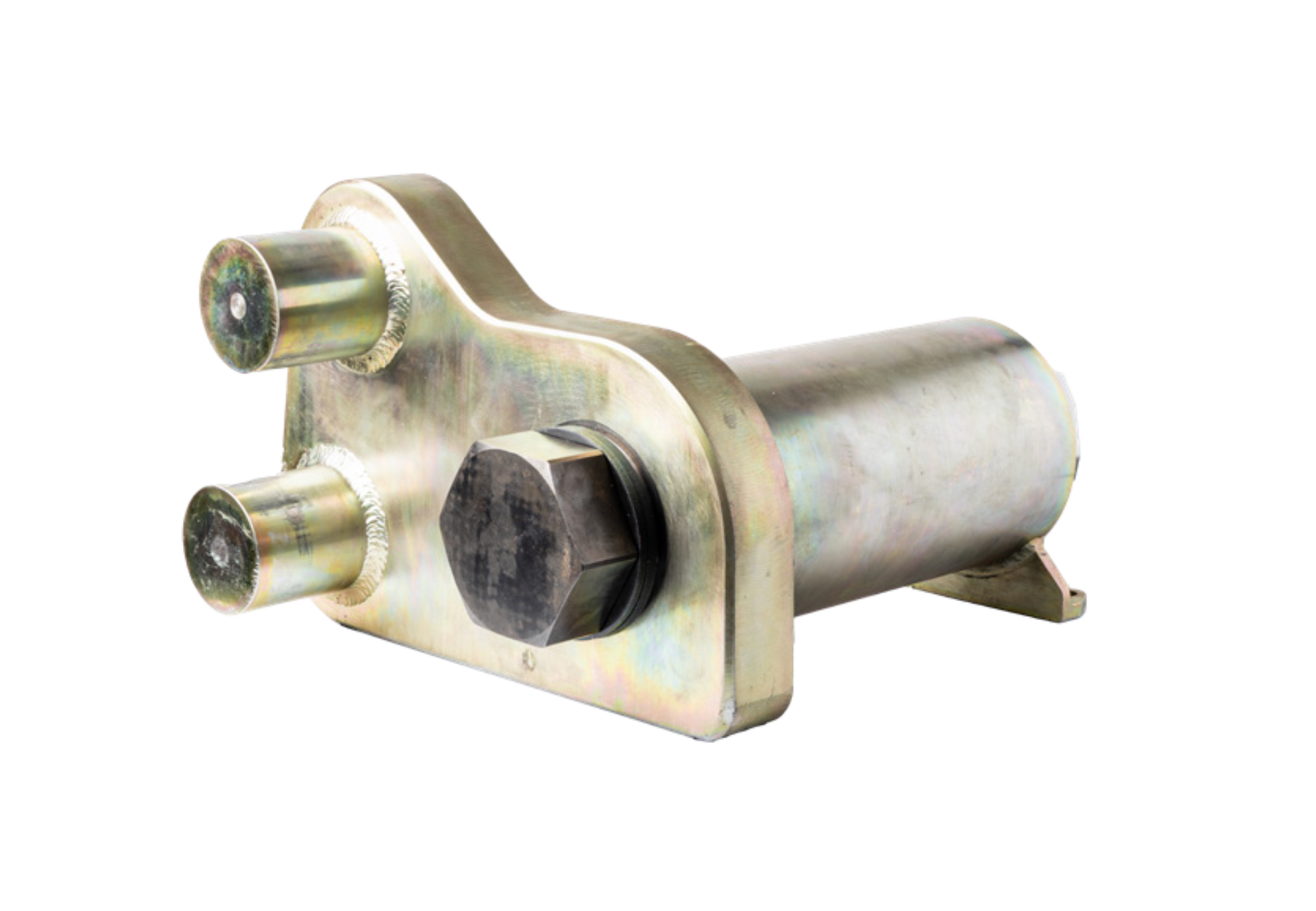

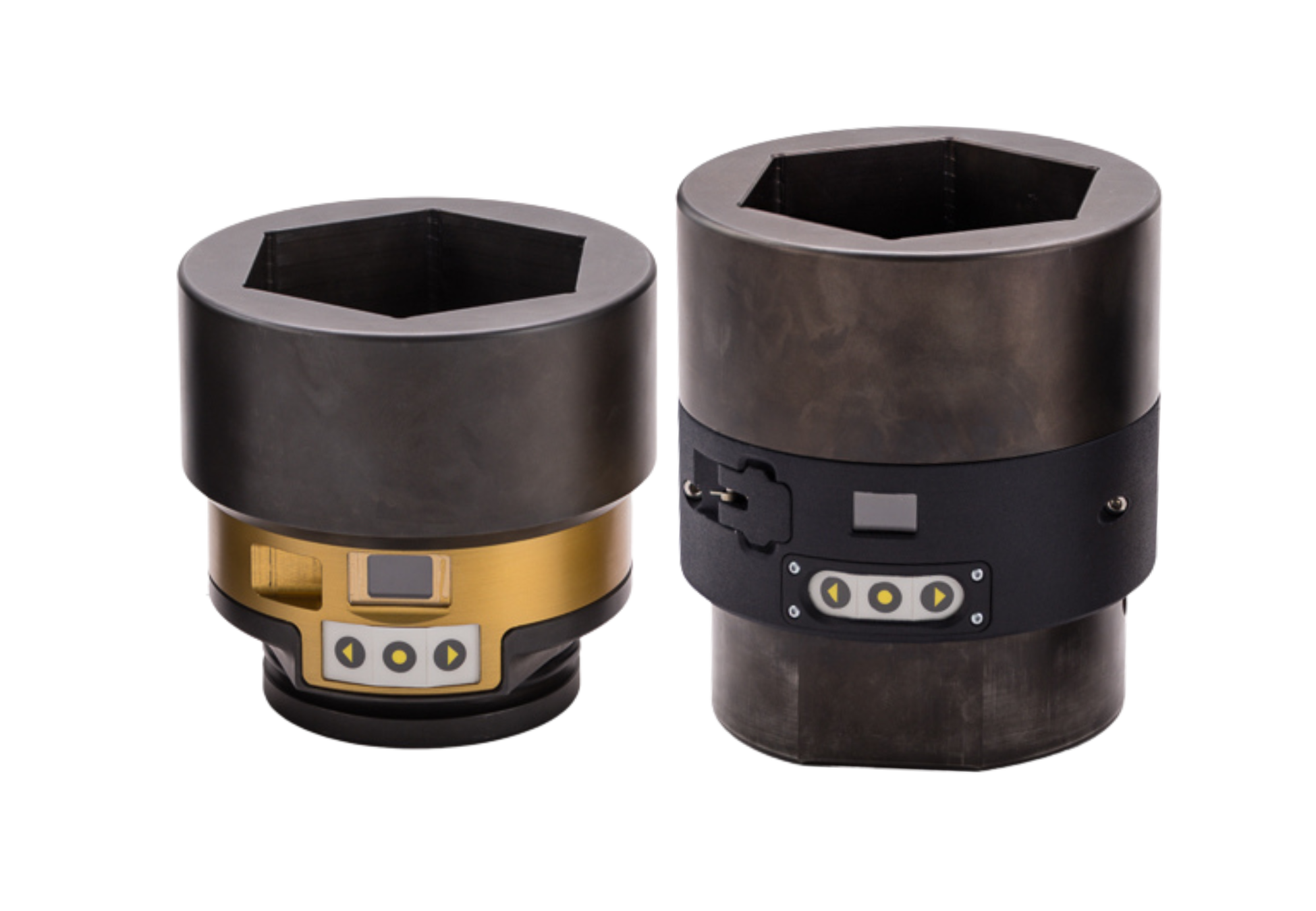

The RAD large calibration system can calibrate tools up to 18K ft-lbs / 24K Nm. The stand is paired with RAD Smart Sockets (12K and 18K*) to calibrate in two ranges.
| Part No. | Imperial Model | Sq Dr | Torque (Ft.lbs) | Torque (NM) | Weight Kg | Dim. A | Dim. B | Dim. C |
|---|---|---|---|---|---|---|---|---|
30526
| RAD CALIBRATION SYSTEM 12K | 1½" | 600 - 12,000 | 815 - 16,300 | 107 | 383 | 500 | 270 |
|
33736
| RAD CALIBRATION SYSTEM 18K | 1½" | 900 - 18,000 | 1,220 - 24,404 | 107 | 383 | 500 | 270 |
Disclaimer: Surface tablet not included, as the system works with RAD Smart Sockets.
