Key Features:
- Reliable solution for installing and removing heavy-duty fasteners
- Patented drive system with one of the highest power-to-weight ratios among pneumatic bolting tools
- Smooth, controlled torque delivery that eliminates destructive hammering
- Lightweight, ergonomic pistol-grip design reduces operator strain and injury, improving productivity
- Stall-type tool with ±4% accuracy and ±2% repeatability
Torque Range: 50–11,000 ft-lbs (70–15,000 Nm)
High Power-to-Weight Pneumatic Torque Wrench
The RAD Single Speed pneumatic torque wrench is renowned for its exceptional power-to-weight ratio. Despite its compact size, it is engineered for heavy-duty applications, featuring the latest generation planetary gearboxes. Built for extreme-duty use, this tool performs reliably across a wide range of industries worldwide.
Product overview
Product overview

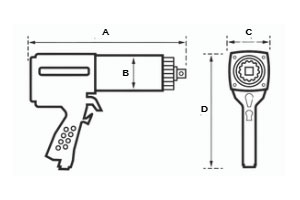

| Part No. | Imperial Tool Model | Sq Dr | Torque Ft.lbs | Torque NM | Speed RPM | Weight Kg | Noise Level Dba | Dim. A | Dim. B | Dim. C | Dim. D |
|---|---|---|---|---|---|---|---|---|---|---|---|
12316
| 350SL | 3/4" | 50 - 350 | 70 - 475 | 65 | 2.7 | 80 | 167 | 61 | 70 | 222 |
|
12814
| 7GX | 3/4" | 100 - 700 | 150 - 950 | 30 | 3.6 | 80 | 228 | 63 | 70 | 228 |
|
12818
| 10GX | 3/4" | 200 -1,000 | 275 -1,400 | 20 | 3.8 | 80 | 228 | 63 | 70 | 228 |
|
17328

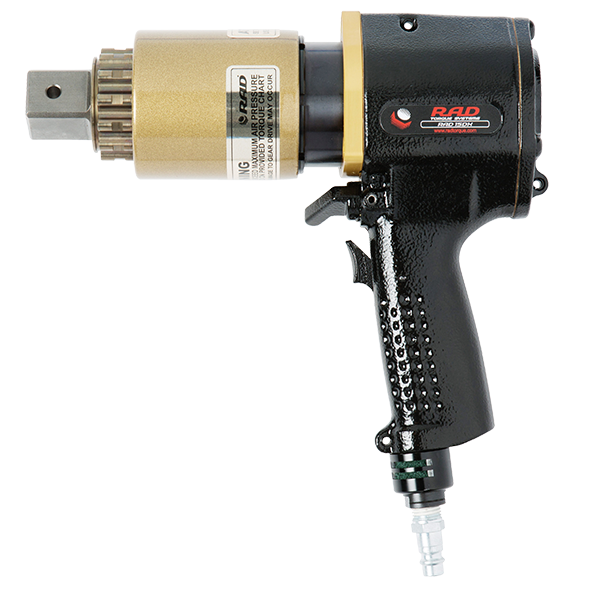

| 15DX | 1" | 300 -1,500 | 400-2,000 | 10 | 4 | 80 | 203 | 69 | 70 | 228 |
| 12345 | 2000 | 1" | 500 - 2,000 | 700 - 2,700 | 13 | 5.9 | 85 | 228 | 76 | 83 | 241 |
|
12377
| 25GX | 1" | 500 - 2,500 | 700 - 3,400 | 9 | 6.1 | 85 | 240 | 78 | 83 | 241 |
|
22238
| 30DX | 1" | 900 - 3,000 | 1,200 -4,000 | 8 | 6.7 | 85 | 254 | 81 | 83 | 241 |
|
12356

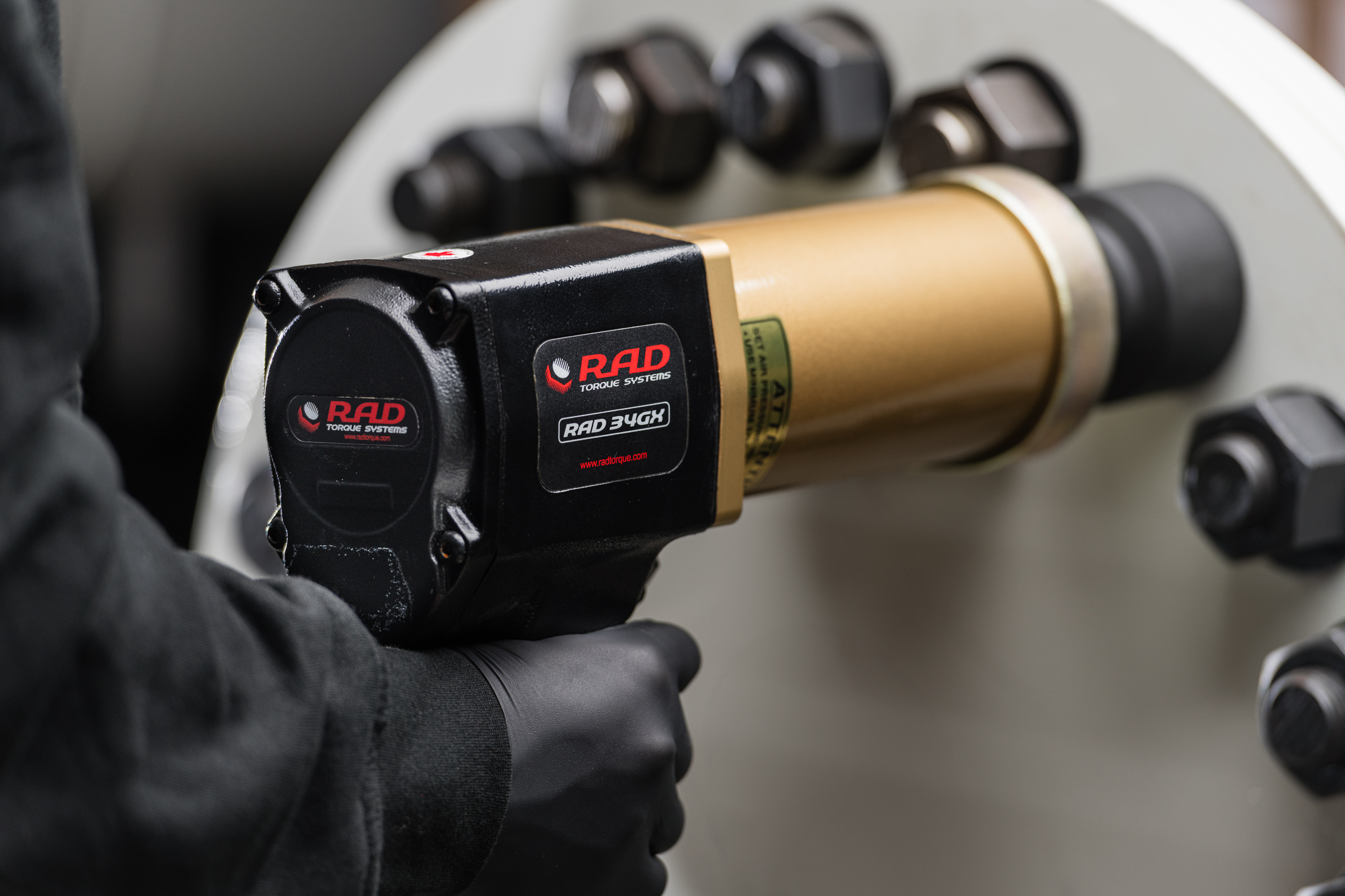

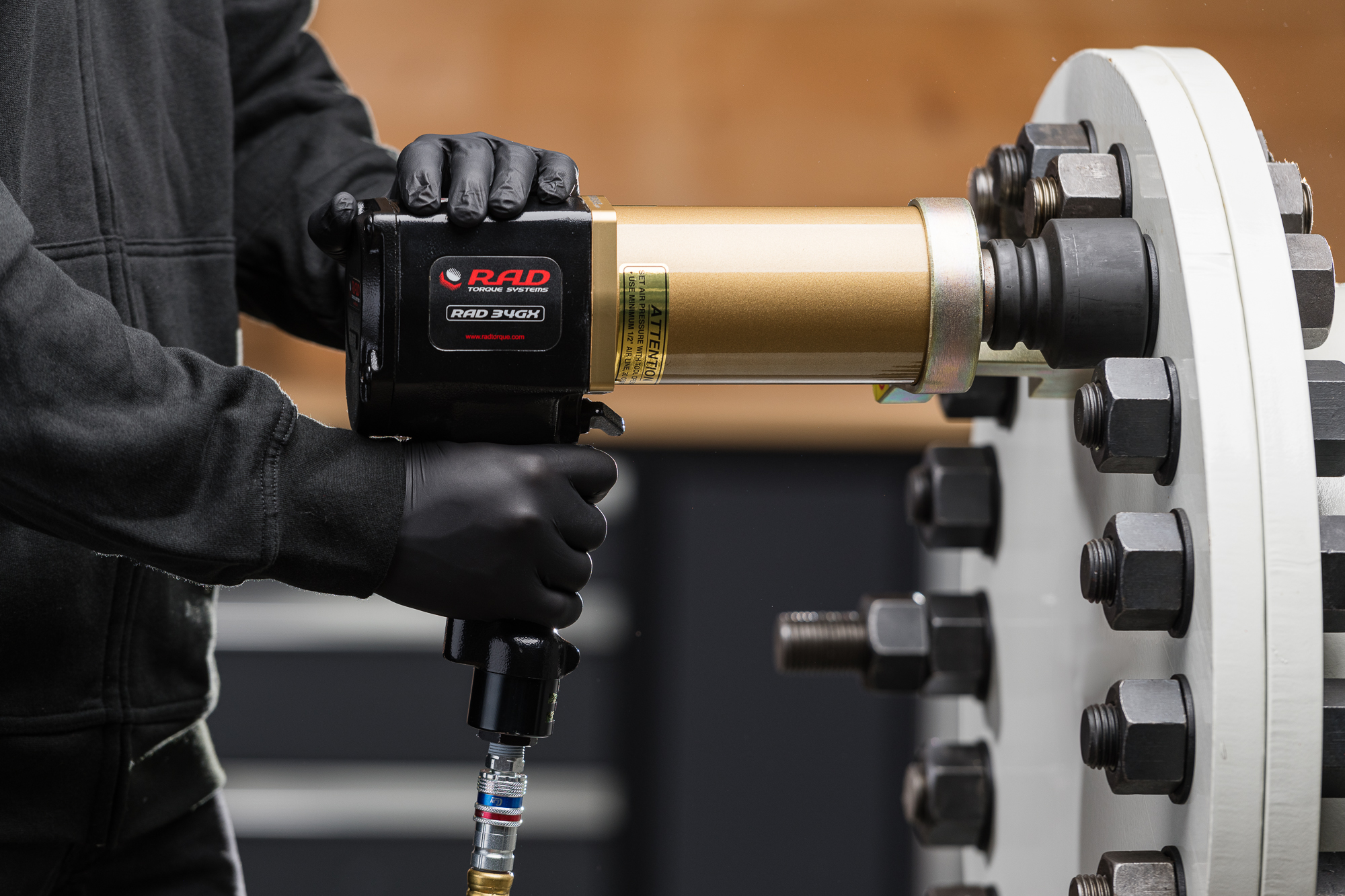

| 34GX | 1" | 1,000 - 3,400 | 1,400 - 4,600 | 12 | 9 | 85 | 317 | 86 | 94 | 274 |
|
20248
| 50DX | 1" 1/2 | 1,500 - 5,000 | 2,000-7,000 | 6.7 | 10.6 | 85 | 285 | 95 | 95 | 264 |
|
15328
| 60DX | 1" 1/2 | 2,000 - 6,000 | 2,700 - 8,000 | 6.6 | 12.4 | 85 | 348 | 101 | 101 | 276 |
|
18558
| 80DX | 1" 1/2 | 2,500 - 8,000 | 3,400 -11,000 | 4 | 13.7 | 85 | 308 | 108 | 108 | 270 |
|
26152
| 110DX | 1" 1/2 | 4,000 - 11,000 | 5,500 -15,000 | 3 | 18.9 | 85 | 353 | 127 | 127 | 281 |
