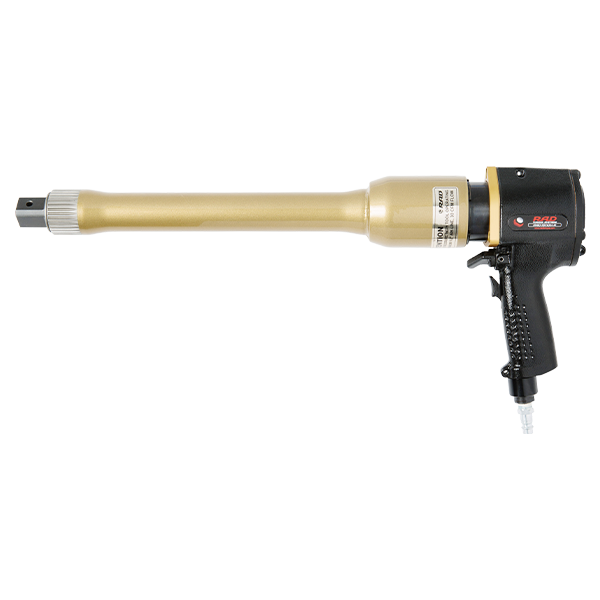

RAD Pneumatic Wheel Nut Bolting Torque Series
RAD Pneumatic Wheel Nut Bolting Torque Series
RAD Pneumatic Wheel Nut Bolting Torque Series
RAD Pneumatic Wheel Nut Bolting Torque Series
Key Features:
- Planetary gear reduction wrenches for vibration-free operation
- High accuracy to prevent under- or over-tightening
- Multiple configurations to suit tight spaces
- Extended reaction point for safer and faster operation
- Ensures correctly tightened wheels
Torque Range: 300–1,800 ft-lbs (400–2,400 Nm)

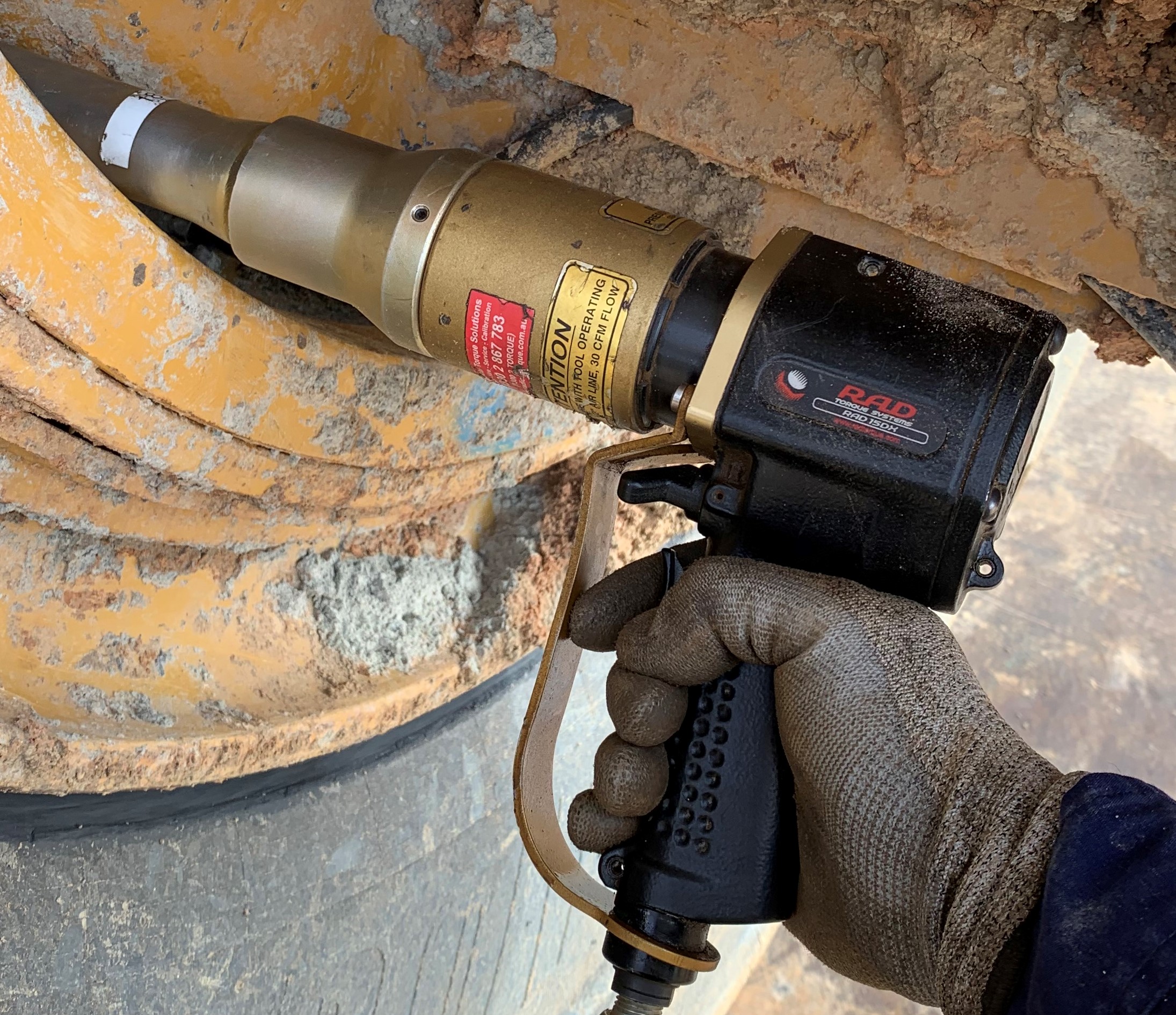

Precision Wheel Nut Bolting for Off-the-Road Mining
The RAD Wheel Nut Bolting series is engineered specifically for wheel nut applications where precise torque control is critical. Incorrectly tightened wheel nuts are a serious safety risk in mining, and traditional impact wrenches can exacerbate these issues while increasing the risk of HAVS-related injuries. These pneumatic tool kits include extensions and reaction arms designed for the unique demands of OTR (Off-the-Road) mining operations.
The series is broken into three main categories to suit your bolting needs.
Product overview
NGX [Fixed]
The Fixed Paddle Wheel Nut Series by RAD Torque Systems offers a streamlined solution for tasks where a dedicated, fixed reaction arm is the ideal choice, providing simplicity and reliability without compromising performance
Product Overview

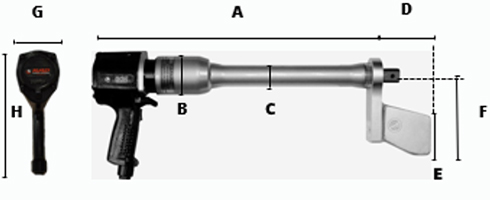

| Part No. | Imperial Tool Model | Sq Dr | Torque (Ft.lbs) | Torque (NM) | Speed RPM | Weight Kg | Noise Level Dba | Dim. A | Dim. B | Dim. C | Dim. D | Dim. E | Dim. F | Dim. G | Dim. H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12344 | 1800NGX | 1" | 500 – 1800 | 678 – 2441 | 10 | 12.3 | 80 | 546 | 77 | 51 | 91 | 89 | 113 | 85 | 240 |
| 12347 | 2000NGX | 1" | 500 – 2000 | 678 – 2712 | 10 | 12.3 | 80 | 546 | 77 | 51 | 91 | 89 | 113 | 85 | 240 |

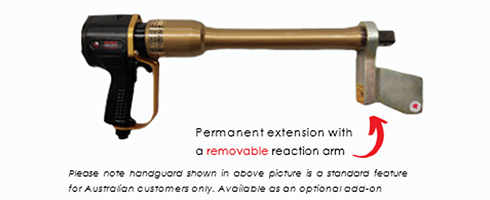

NDX-R & NGX-R
R= Removable reaction arm
The NDX-R and NGX-R feature a fixed nose extension with a removable reaction arm, providing the flexibility to adapt to various applications. This design allows for easy swapping of reaction arms to suit different reaction points, ensuring optimal operator safety and versatility in diverse tasks.
Product Overview
| Part No. | Imperial Tool Model | Sq Dr | Torque (Ft.lbs) | Torque (NM) | Speed RPM | Weight Kg | Noise Level Dba | Dim. A | Dim. B | Dim. C | Dim. D | Dim. E | Dim. F | Dim. G | Dim. H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13435

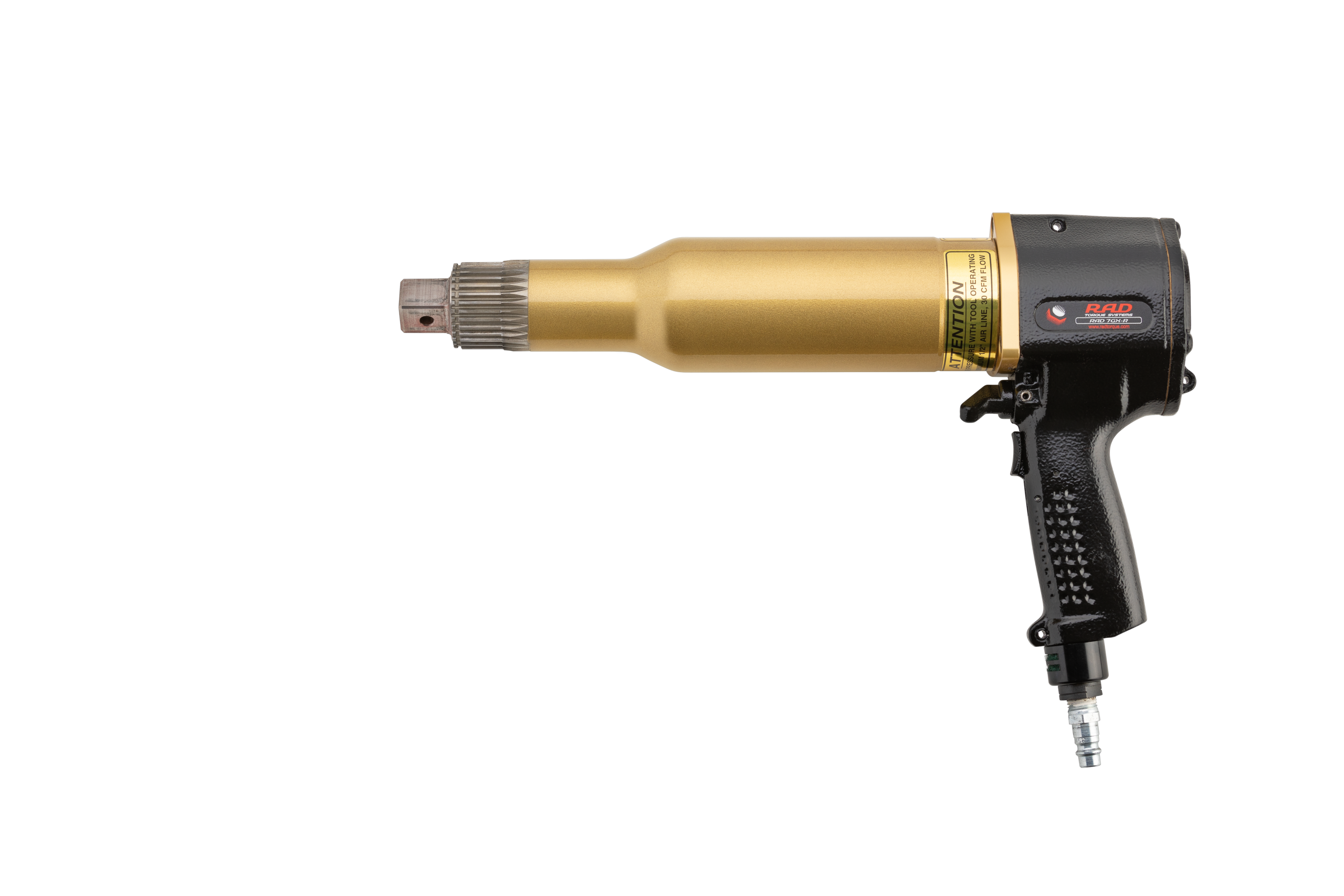

| 7GX-R | 3/4" | 300 – 700 | 407 – 954 | 115 | 5.4 | 80 | 368 | 64 | 50 | 101 | 38 | 109 | 69 | 228 |
|
20610

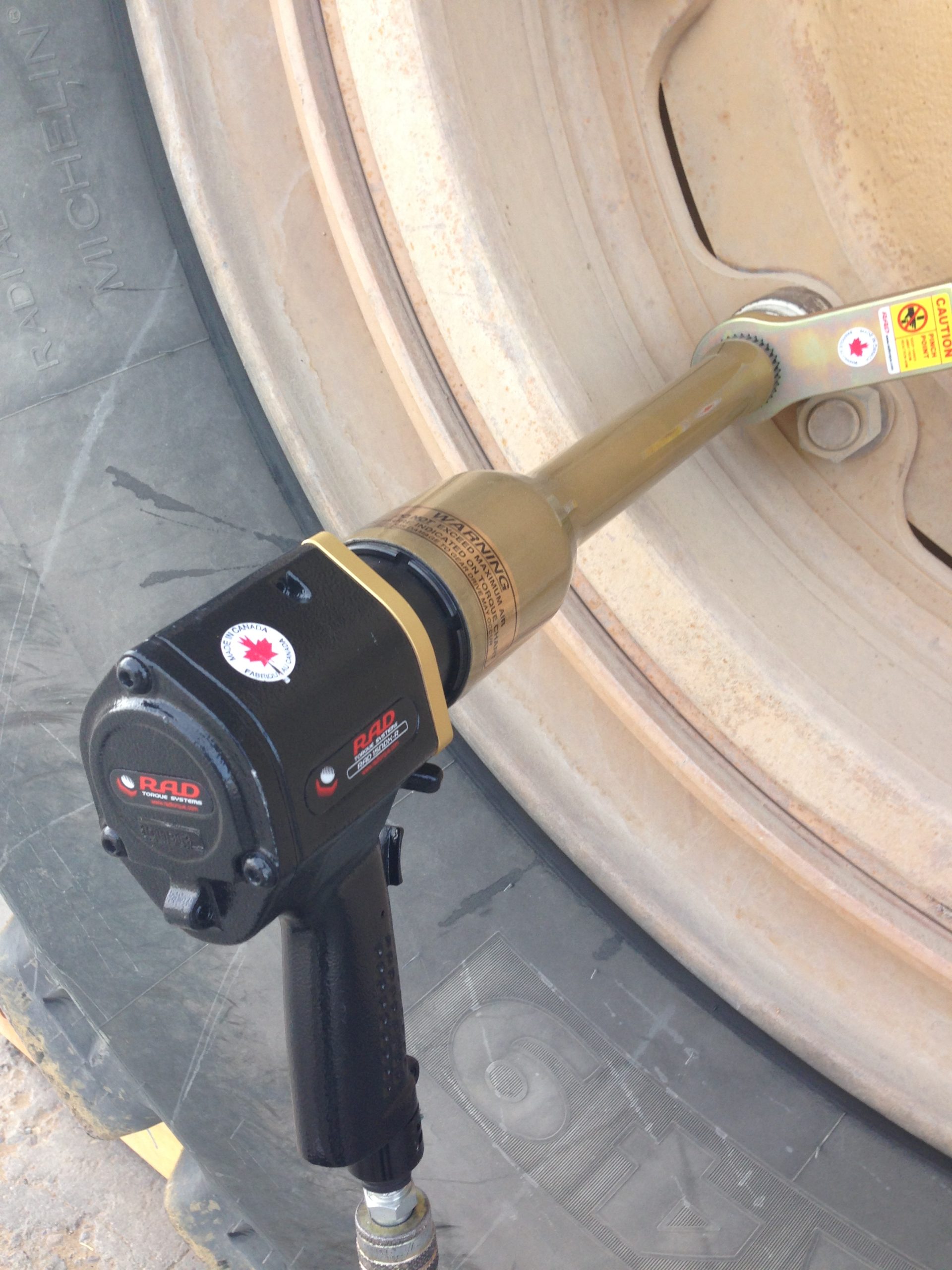

| 15NDX-R | 1" | 300 – 1500 | 407 – 2034 | 70 | 7.2 | 80 | 542 | 93 | 51 | 93 | 83 | 163 | 83 | 230 |
|
13477
| 1800NGX-R | 1" | 500 – 1800 | 678 – 2441 | 10 | 12.5 | 85 | 546 | 77 | 51 | 91 | 89 | 113 | 85 | 240 |
| 13479 | 2000NGX-R | 1" | 500 – 2000 | 678 – 2712 | 10 | 12.5 | 85 | 546 | 77 | 51 | 91 | 89 | 113 | 85 | 240 |
NX Kit
NX Kits provide a comprehensive solution for a wide range of bolting applications. Each kit includes interchangeable reaction arms and accessories, offering unmatched flexibility, adaptability, and performance. Designed for operators who demand precision and efficiency on a range of different applications, NX Kits ensure you’re ready for any task with a single, reliable system.
Product Overview
RAD NX KITS

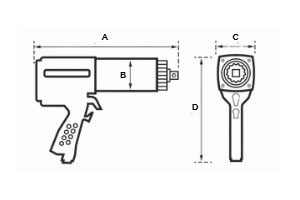

| Part No. | Imperial Tool Model | Sq Dr | Torque (Ft.lbs) | Torque (NM) | Speed RPM | Weight Kg | Noise Level Dba | Dim. A | Dim. B | Dim. C | Dim. D |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
13591
| 10GX-NX | 3/4" | 200 – 1000 | 271 – 1356 | 20 | 3.6 | 80 | 207 | 63 | 50 | 205 |
|
15523
| 15DX-NX | 1" | 300 – 1500 | 407 – 2034 | 10 | 3.9 | 80 | 240 | 69 | 69 | 230 |
RTS NX KITS
| Part No. | Imperial Tool Model | Sq Dr | Torque (Ft.lbs) | Torque (NM) | Speed RPM | Weight Kg | Noise Level Dba | Dim. A | Dim. B | Dim. C | Dim. D |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 18218.NX12* | 10GX-NX | 3/4" | 200 – 1000 | 271 – 1356 | 20 | 3.6 | 80 | 207 | 63 | 50 | 205 |
| 17288.NX12* | 15DX-NX | 1" | 300 – 1500 | 407 – 2034 | 10 | 3.9 | 80 | 240 | 69 | 69 | 230 |
| 23445.NX02* | 2000X-NX | 1" | 500 – 2000 | 700 – 2700 | 13 | 5.3 | 85 | 228 | 76 | 63 | 240 |
| 12377.NX02* | 25GX-NX | 1" | 500 – 2500 | 700 – 3400 | 10 | 6.1 | 85 | 240 | 76 | 63 | 240 |
| 22238.NX02* | 30DX-NX | 1" | 900 – 3000 | 1200 – 4090 | 8 | 6.7 | 85 | 254 | 81 | 83 | 241 |
| 2356.NX12* | 34GX-NX | 1" | 1000 – 3400 | 1400 – 4600 | 12 | 9 | 85 | 325 | 86 | 83 | 264 |
Disclaimer: The part number provided is for the 12” nose extension as standard. 15” or 18” extension sizes, available upon request.
