RAD Smart Socket™ Features:
- Measures and displays peak torque up to 18,000 ft. lbs. (16,200 Nm)

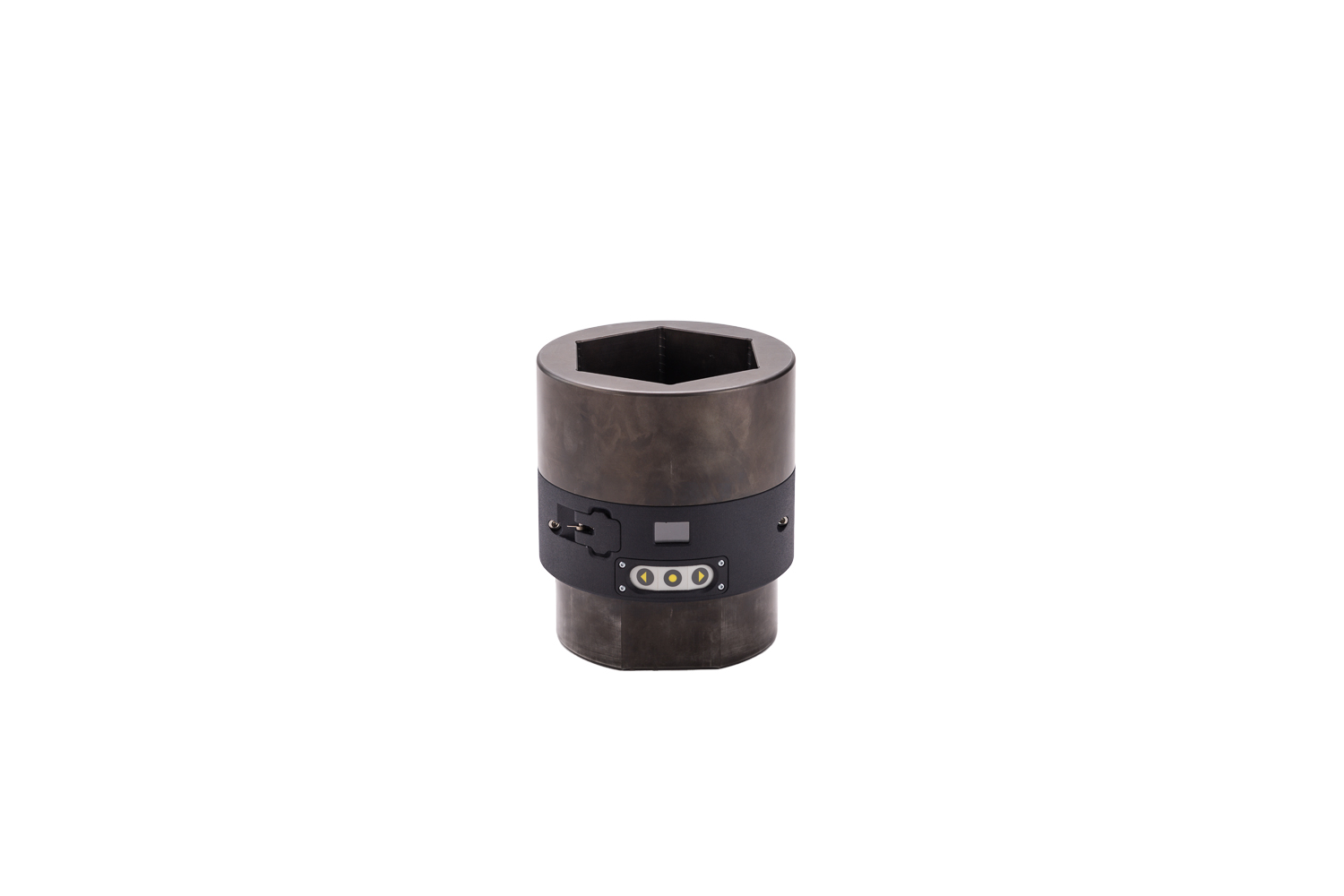

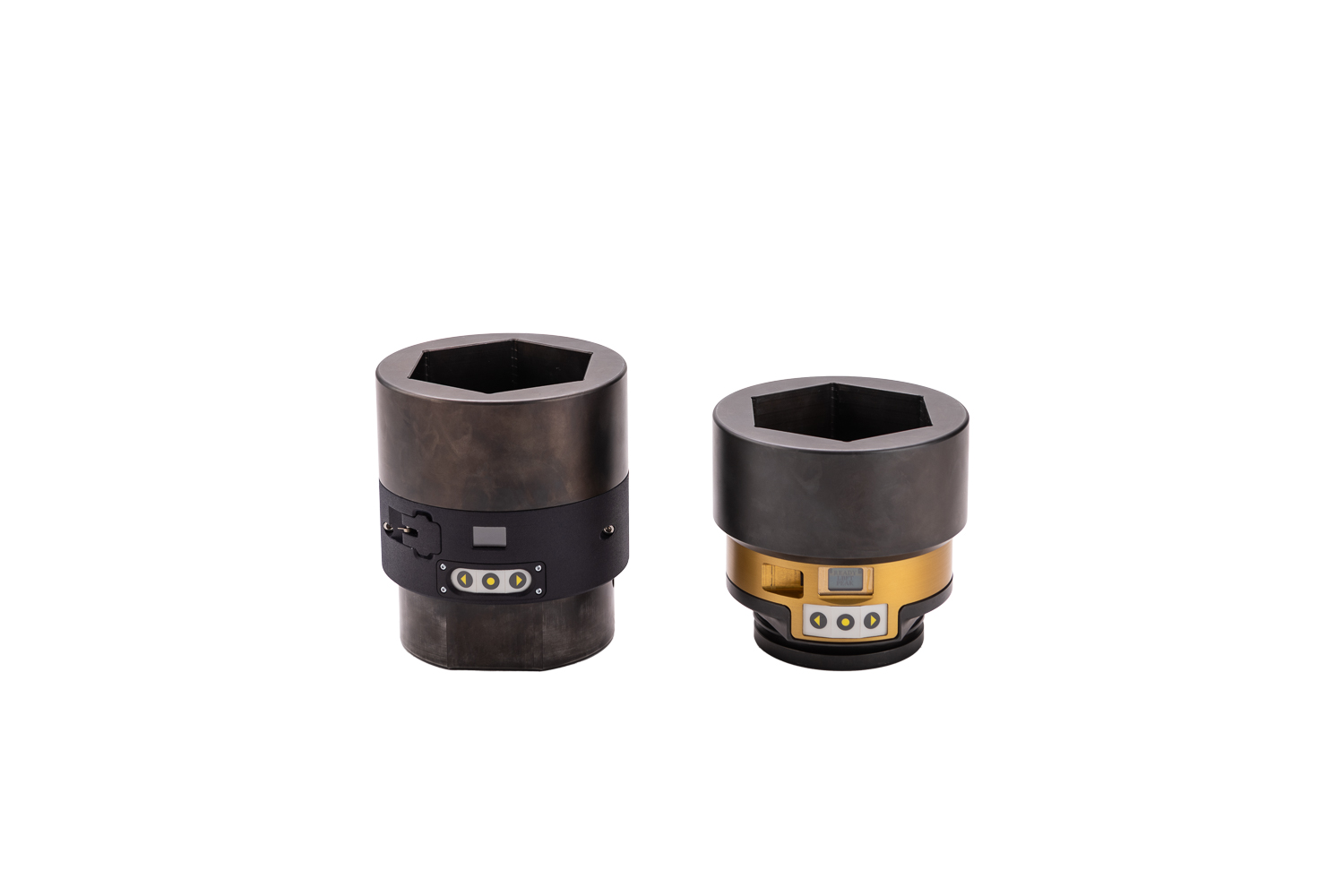

- NEW 18K Smart Socket™ must be used with a deep reaction arm
- Build-in rechargeable battery
- “Pass” or “Fail” indication function
- Data logging – download logs (XLS, CSV, PDF)
- Free software included
- Full traceability of bolted joints
- Optional: Tablet, SDM calibration bench

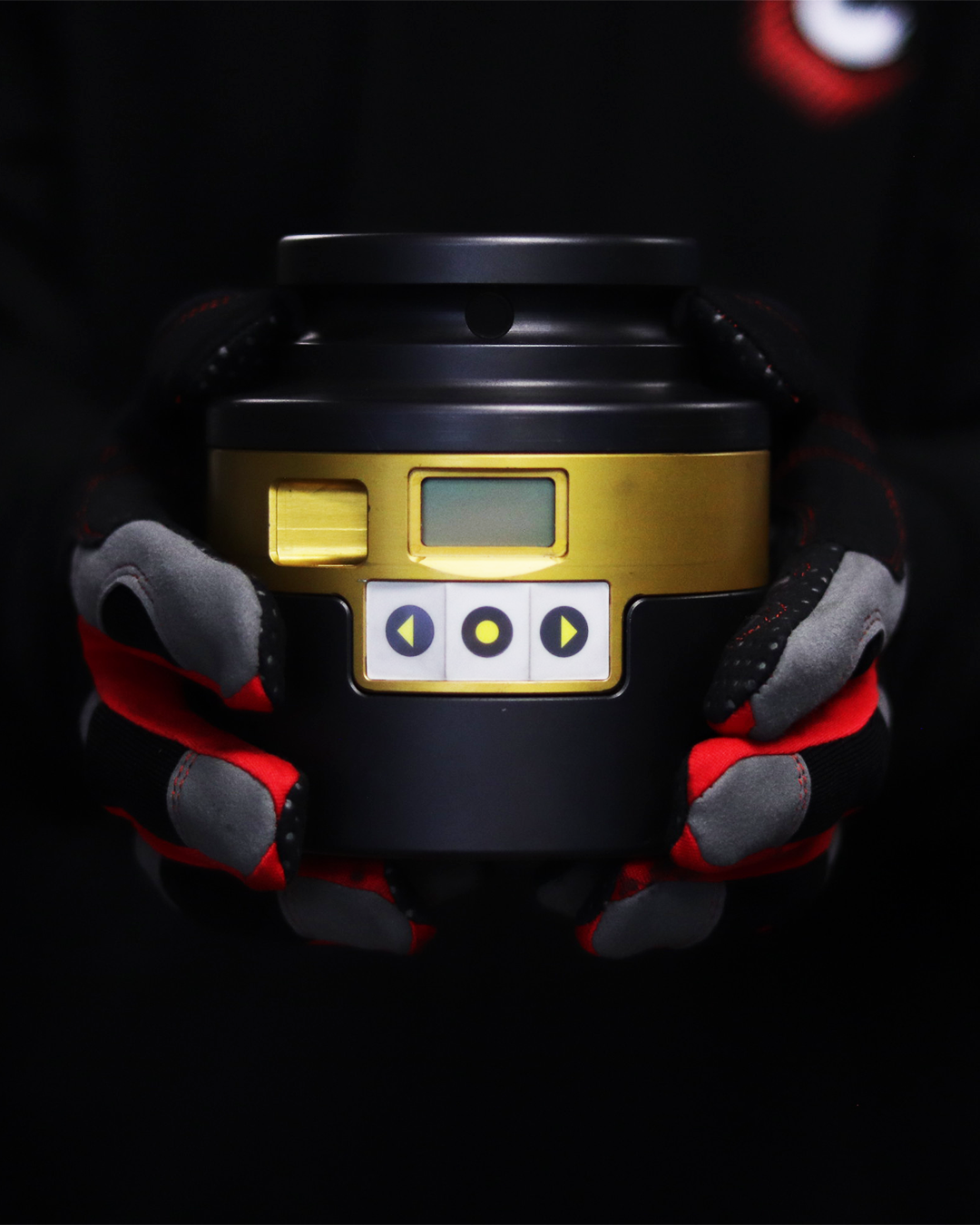

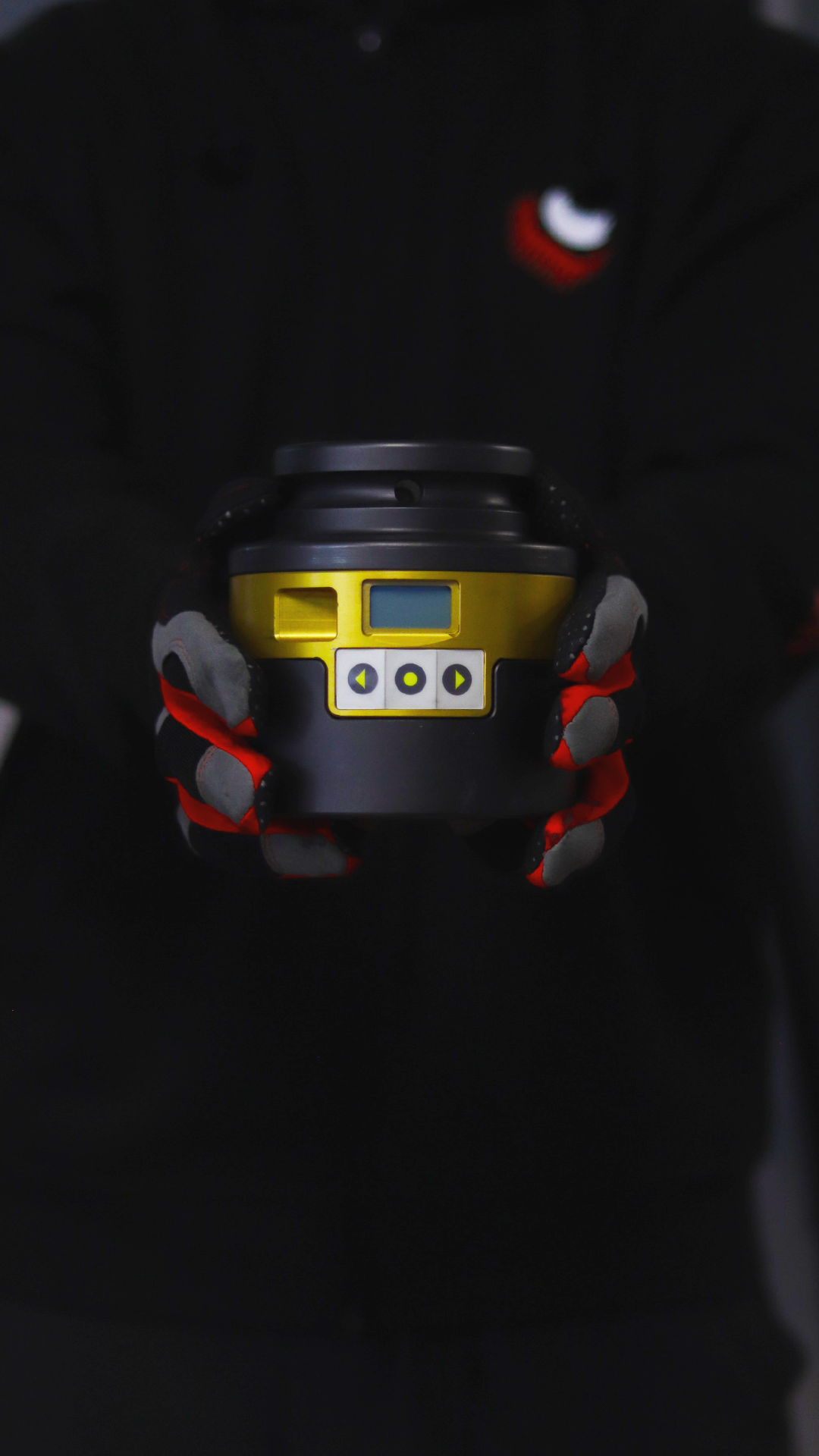

Innovative Socket for Direct Bolt Torque Measurement
The RAD Smart Socket™ combines advanced transducer technology with a custom interface to capture the torque applied to a bolt during tightening. Compact and precise, it serves as an excellent auditing tool for checking bolted joints and can also act as a master calibration device for a range of torque tools. Available in both metric and imperial sizes.

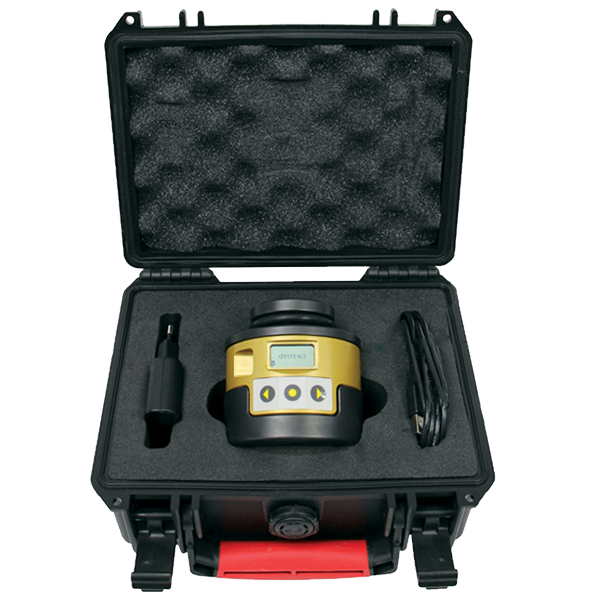

Each RAD Smart Socket™ comes with:

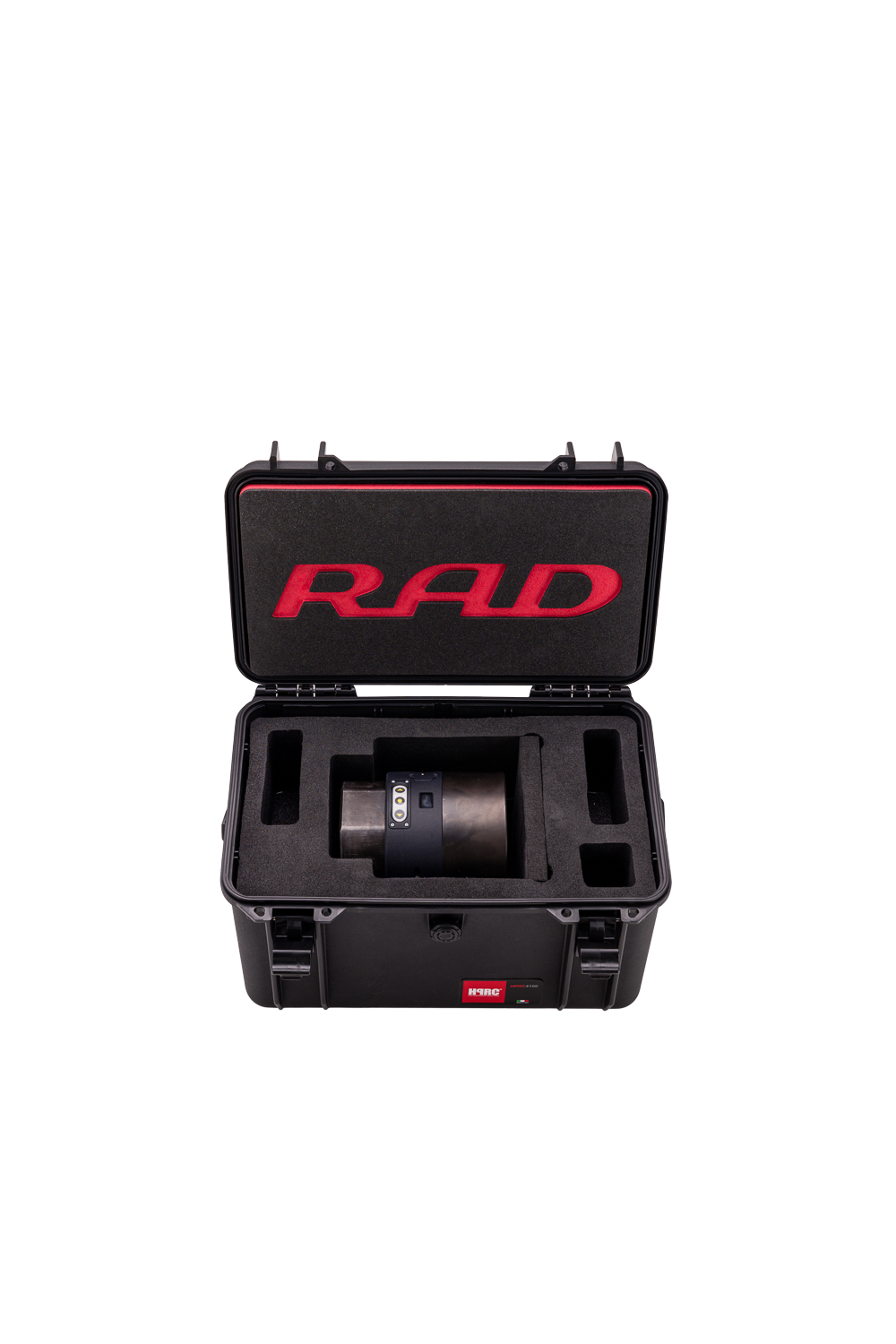

- A durable, weather-resistant storage case
- Plug and USB cable
- ISO 17205 calibration certificate
Torque Range: 150-18,000 ft. lbs. (200-16,200 Nm)
RAD Smart Sockets™ use RAD Torque’s transducer technology combined with custom sockets to measure the actual torque applied to the bolt during a torque cycle. Its compact size and innovative technology make the Smart Socket™ a perfect audit tool for inspecting bolted joints and it can function as a calibration device for various torque tools. Patented product.

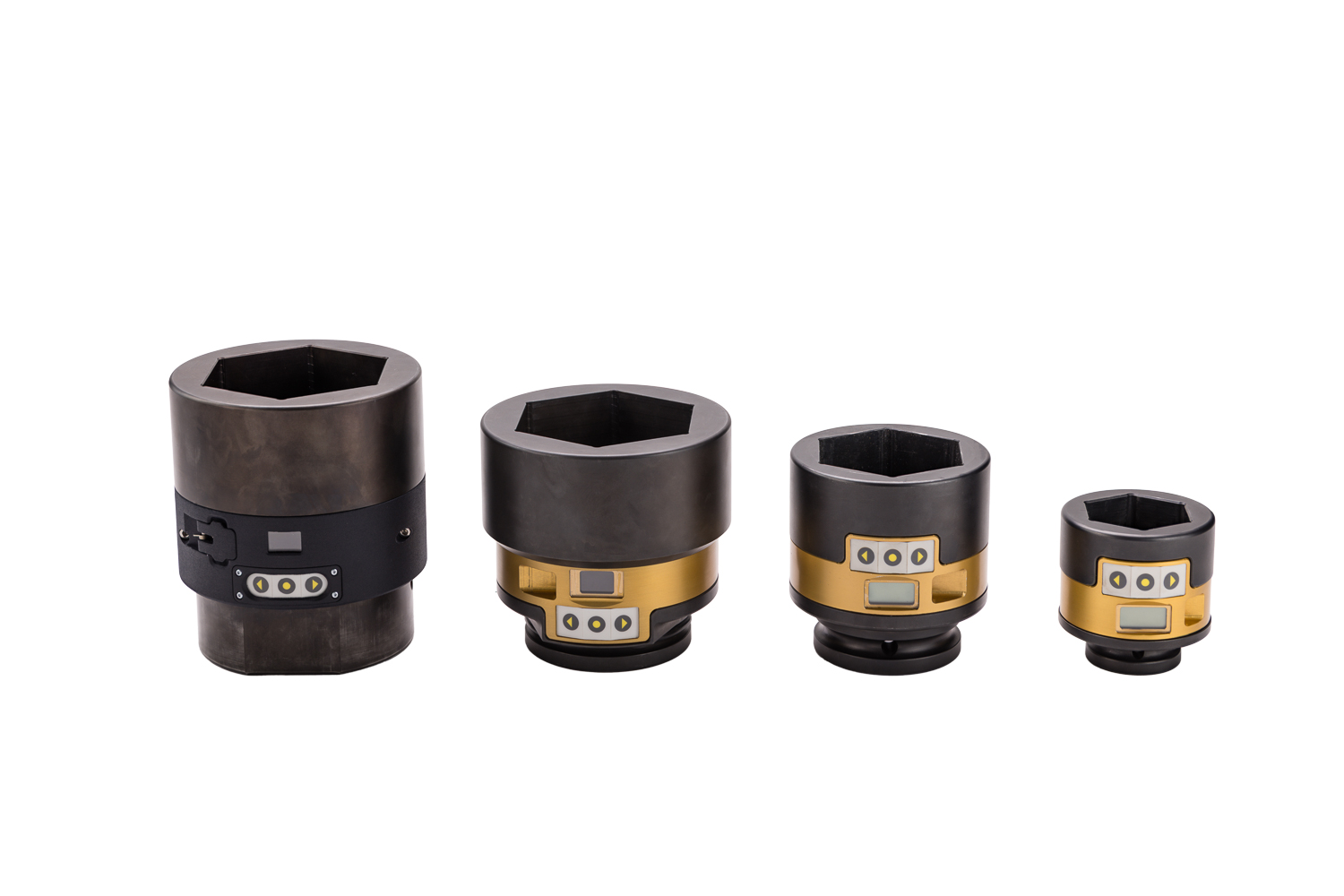

Product overview
Product overview

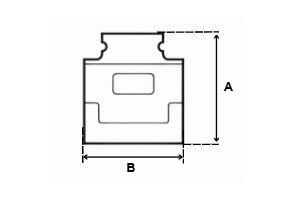

| Smart Socket™ Series | Part No. | Socket™ Hex Size | Sq Dr | Torque (Ft.lbs) | Torque (Nm) | Weight kg | Dim. Height A | Dim. Diameter B |
|---|---|---|---|---|---|---|---|---|
| Smart Socket™ 1500/2000-M (Metric range: 200-2000) |
20879
| 33mm | 1" | 150 - 1,500 | 200 - 2,000 | 1.2 | 100 | 72 |
|
21363
| 36mm | 1" | 150 - 1,500 | 200 - 2,000 | 1.2 | 87 | 72 | |
|
22158
| 41mm (1-5/8") | 1" | 150 - 1,500 | 200 - 2,000 | 1.2 | 87 | 72 | |
|
20880
| 46mm (1-13/16") | 1" | 150 - 1,500 | 200 - 2,000 | 1.2 | 87 | 72 | |
| Smart Socket™ 3400/4600-M (Metric range: 460-4600) |
20881
| 50mm | 1" | 300 - 3,000 | 400 - 4,000 | 1.5 | 89 | 86 |
|
20882
| 55mm | 1" | 300 - 3,000 | 400 - 4,000 | 1.5 | 89 | 86 | |
|
20883
| 60mm | 1" | 300 - 3,000 | 400 - 4,000 | 1.5 | 89 | 86 | |
| Smart Socket™ 8000/10800-M (Metric range: 1100-10800) |
23690
| 65mm (2-9/16") | 1 1/2" | 800 - 8,000 | 1,100 - 10,800 | 4 | 121 | 115 |
|
28722
| 70mm (2-3/4") | 1 1/2" | 800 - 8,000 | 1,100 - 10,800 | 4 | 121 | 115 | |
|
20885
| 80mm | 1 1/2" | 800 - 8,000 | 1,100 - 10,800 | 4 | 121 | 115 | |
| Smart Socket™ 1200/16200-M (Metric range: 1600-16200) |
25657
| 90mm | 1 1/2" | 800 - 12,000 | 1,600 - 16,200 | 5.8 | 126 | 131 |
|
25658
| 100mm (3-15/16") | 1 1/2" | 800 - 12,000 | 1,600 - 16,200 | 7.2 | 132 | 146 |
Disclaimer: 18K Smart Socket™ must be used with deep reaction arm
