RTS-BW Magnetic Backup Wrench
RTS-BW Magnetic Backup Wrench
RTS-BW Magnetic Backup Wrench
RTS-BW Magnetic Backup Wrench
Key Features
- Size Range: 30–145 mm (1-1/4″–5-3/4″)
- Load Capacity: Up to 28,000 ft-lb (37,962 Nm)
- Hands-free magnetic operation
- Eliminates the need for hydraulic backup tools
- Reduces the risk of hand and finger injuries
- Eliminates sparks associated with slogging wrenches
- Slim, lightweight design for confined spaces
- Heat-treated, heavy-duty steel construction
- Bi-hexagonal design for secure engagement
- Embedded magnets for secure positioning
RTS-BW Magnetic Backup Wrench
Designed to prevent nut rotation during torque tightening and loosening, the RTS-BW Magnetic Backup Wrench provides a safe, hands-free alternative to conventional backup wrenches. Its slim, lightweight design improves access in confined spaces, while integrated magnets securely hold the wrench in position, reducing operator fatigue and improving productivity. Manufactured from heat-treated, high-strength steel, the RTS-BW Series is suitable for demanding industrial bolting applications and is available in metric sizes from 30–145 mm (imperial 1-1/4″–5-3/4″).
Operating Instructions

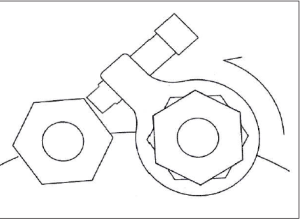

- Adjust the release bolt to suit the application (approximately 1/2″ extension as a starting point).
- Position the backup wrench on the nut and rotate until the release bolt contacts a suitable reaction point.
- If required, extend the release bolt slightly to achieve secure contact.
- Complete the torque operation using the hydraulic torque wrench.
- Loosen the release bolt with a manual wrench and remove the backup wrench before moving to the next fastener.
Product overview
Product overview
| Model | Across Flat (mm) | Across Flat (In) | Load Limit (Ft.lbs) | Load Limit (Nm) |
|---|---|---|---|---|
| RTS-BW-104 | 30 | 1-1/4” | 2,400 | 3,254 |
| RTS-BW-107 | 36 | 1-7/16” | 2,500 | 3,390 |
| RTS-BW-110 | 41 | 1-5/8" | 3,500 | 4,745 |
| RTS-BW-113 | 46 | 1-13/16” | 3,500 | 4,745 |
| RTS-BW-200 | 50 | 2” | 4,100 | 5,559 |
| RTS-BW-203 | 55 | 2-3/16 | 4,200 | 5,694 |
| RTS-BW-204 | 57 | 2-1/4” | 4,300 | 5,830 |
| RTS-BW-206 | 60 | 2-3/8” | 4,300 | 5,830 |
| RTS-BW-209 | 65 | 2-9/16” | 4,550 | 6,169 |
| RTS-BW-212 | 70 | 2-3/4” | 5,600 | 7,592 |
| RTS-BW-215 | 75 | 2-15/16" | 6,300 | 8,542 |
| RTS-BW-302 | 80 | 3-1/8” | 7,000 | 9,491 |
| RTS-BW-308 | 85 | 3-1/2” | 7,200 | 9,762 |
| RTS-BW-311 | 90 | 3-11/16” | 7,300 | 9,897 |
| RTS-BW-314 | 95 | 3-7/8” | 9,000 | 12,202 |
| RTS-BW-400 | 100 | 4” | 24,000 | 32,539 |
| RTS-BW-402 | 105 | 4-1/8” | 24,000 | 32,539 |
| RTS-BW-404 | 110 | 4-1/4” | 24,000 | 32,539 |
| RTS-BW-408 | 115 | 4-1/2” | 25,000 | 33,895 |
| RTS-BW-410 | 120 | 4-5/8” | 27,000 | 36,607 |
| RTS-BW-500 | 130 | 5” | 27,000 | 36,607 |
| RTS-BW-506 | 135 | 5-3/8” | 27,000 | 36,607 |
| RTS-BW-512 | 145 | 5-3/4” | 28,000 | 37,962 |
