RTS Impact Wrench Series
RTS Impact Wrench Series
RTS Impact Wrench Series
RTS Impact Wrench Series
Key Features
- Twin Hammer Mechanism – High-performance, balanced impact clutch.
- 3-Power Settings – Adjustable forward power with full power in reverse.
- Excellent Power-to-Weight Ratio – High performance in a lightweight design.
- Fingertip F/R Control – One-handed forward and reverse operation.
- Ergonomic Composite Handle – Soft TPR grip for improved comfort and reduced fatigue.
- Fast Rundown Speed – Ideal for repetitive fastening applications.
- 12-Month Warranty
Torque Range: 1,000–1,400 ft-lb (1,356–1,898 Nm)

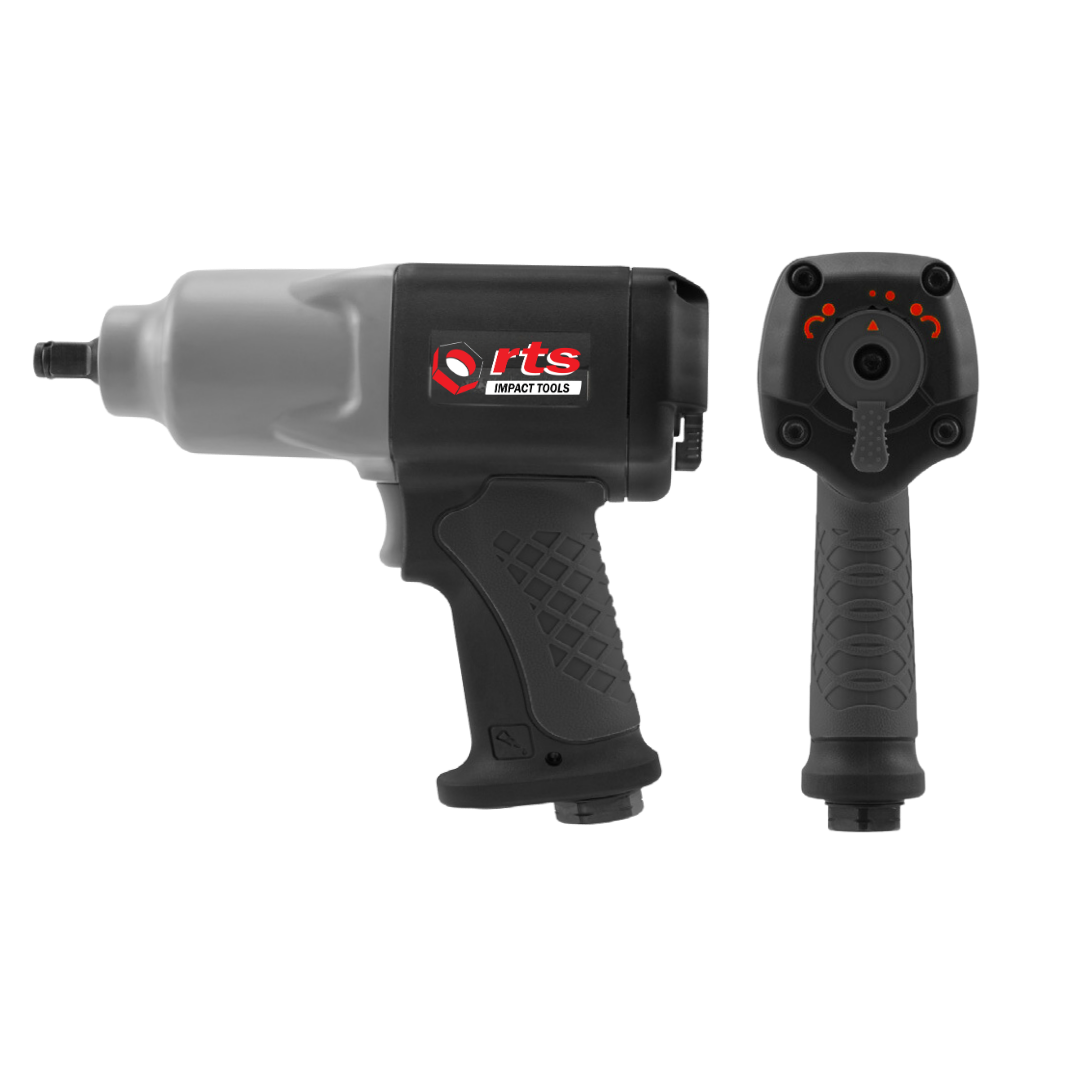

RTS Pneumatic Impact Wrench Series
Built for demanding industrial fastening applications, the RTS Pneumatic Impact Wrench Series delivers high torque output with an excellent power-to-weight ratio. Featuring a lightweight composite housing, ergonomic pistol grip and patented fingertip forward/reverse control, these impact wrenches provide comfortable one-handed operation while reducing operator fatigue. Available in models delivering up to 1,400 ft-lb (1,898 Nm) of maximum torque, they are ideal for repetitive assembly, maintenance and service applications.
Product overview
Product overview
| Part No. | Model | Square Drive | Max Torque @ 5s (Ft.lbs) | Max Torque @ 5s (Nm) | Free Speed RPM | Air Inlet | Air Hose I.D | Weight (Kg) | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| THW-1000 | IMPACT WRENCH 1000 | 1/2’’ | 1,000 | 1,356 | 9,500 | ¼” | ⅜ | 2.3 | 190 |
| THW-1300 | IMPACT WRENCH 1300 | 3/4’’ | 1,300 | 1,763 | 6,500 | ⅜” | ½ | 4.63 | 222 |
| THW-1400 | IMPACT WRENCH 1400 | 1” | 1,400 | 1,898 | 6,500 | ⅜” | ½ | 4.71 | 227 |
| THWE-1400 | IMPACT WRENCH 1400 | 1” | 1,400 | 1,898 | 6,500 | ⅜” | ½ | 4.71 | 227 |

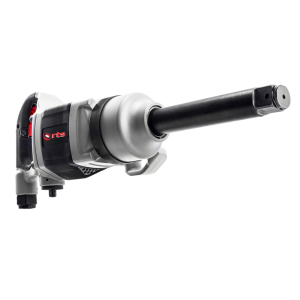

THWE-1400, (E) = Extended anvil
