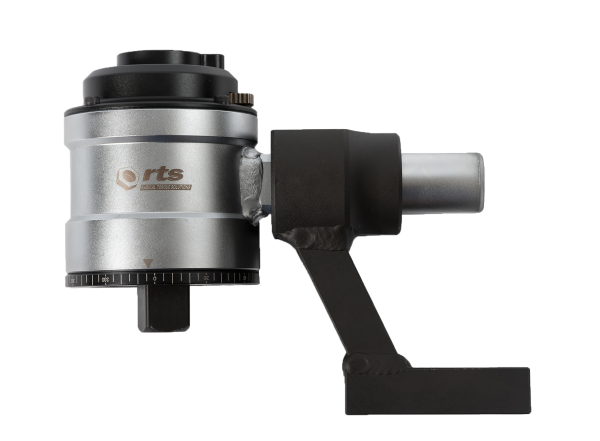

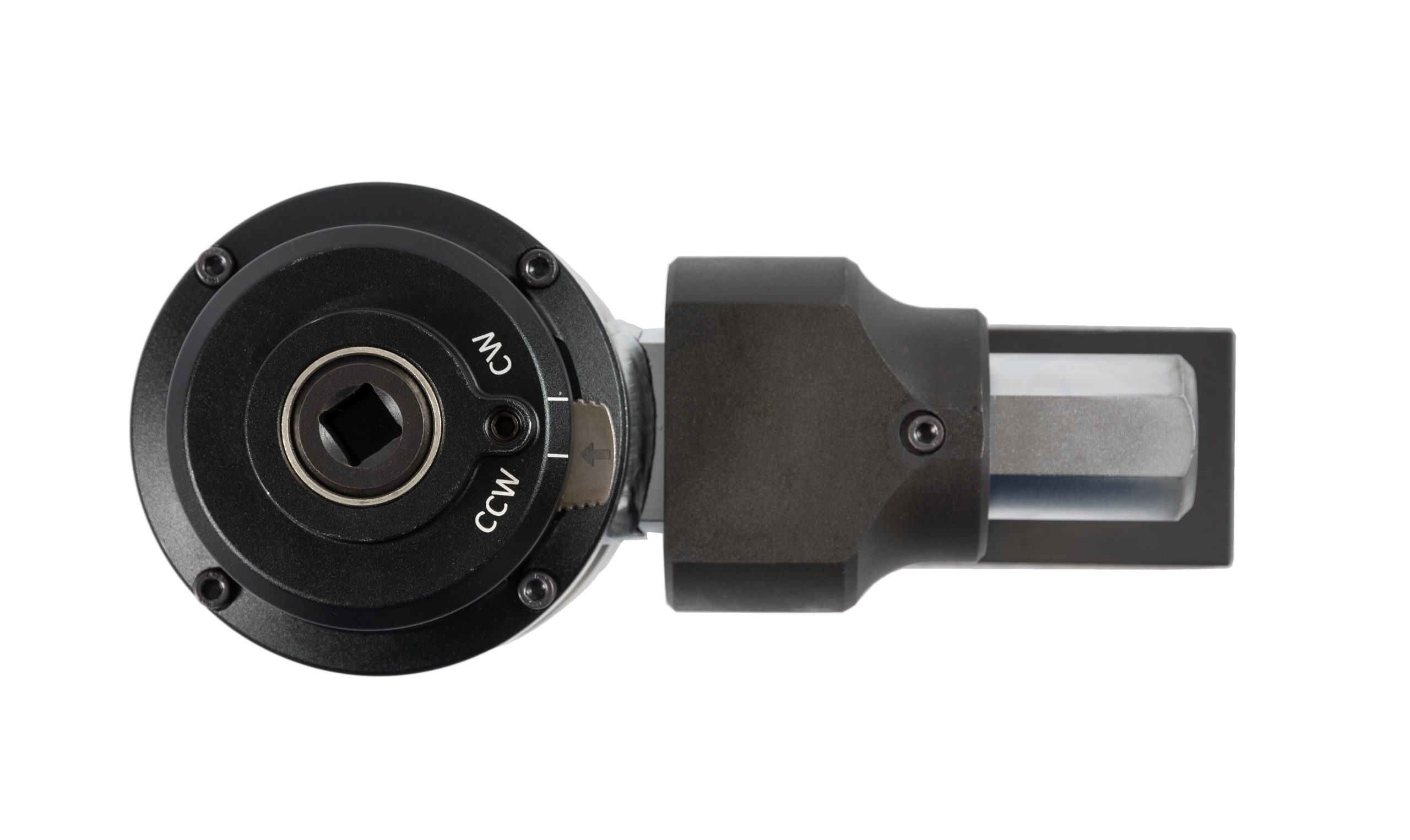

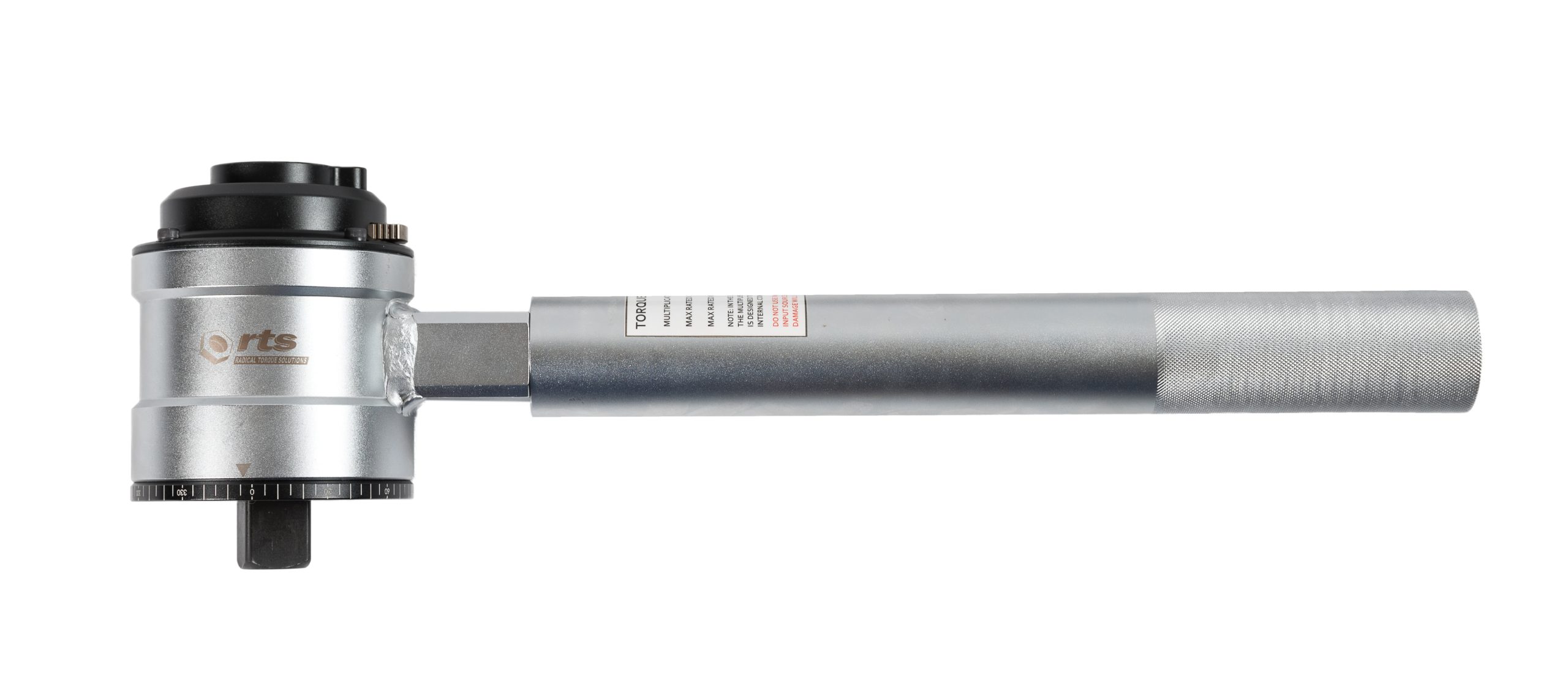

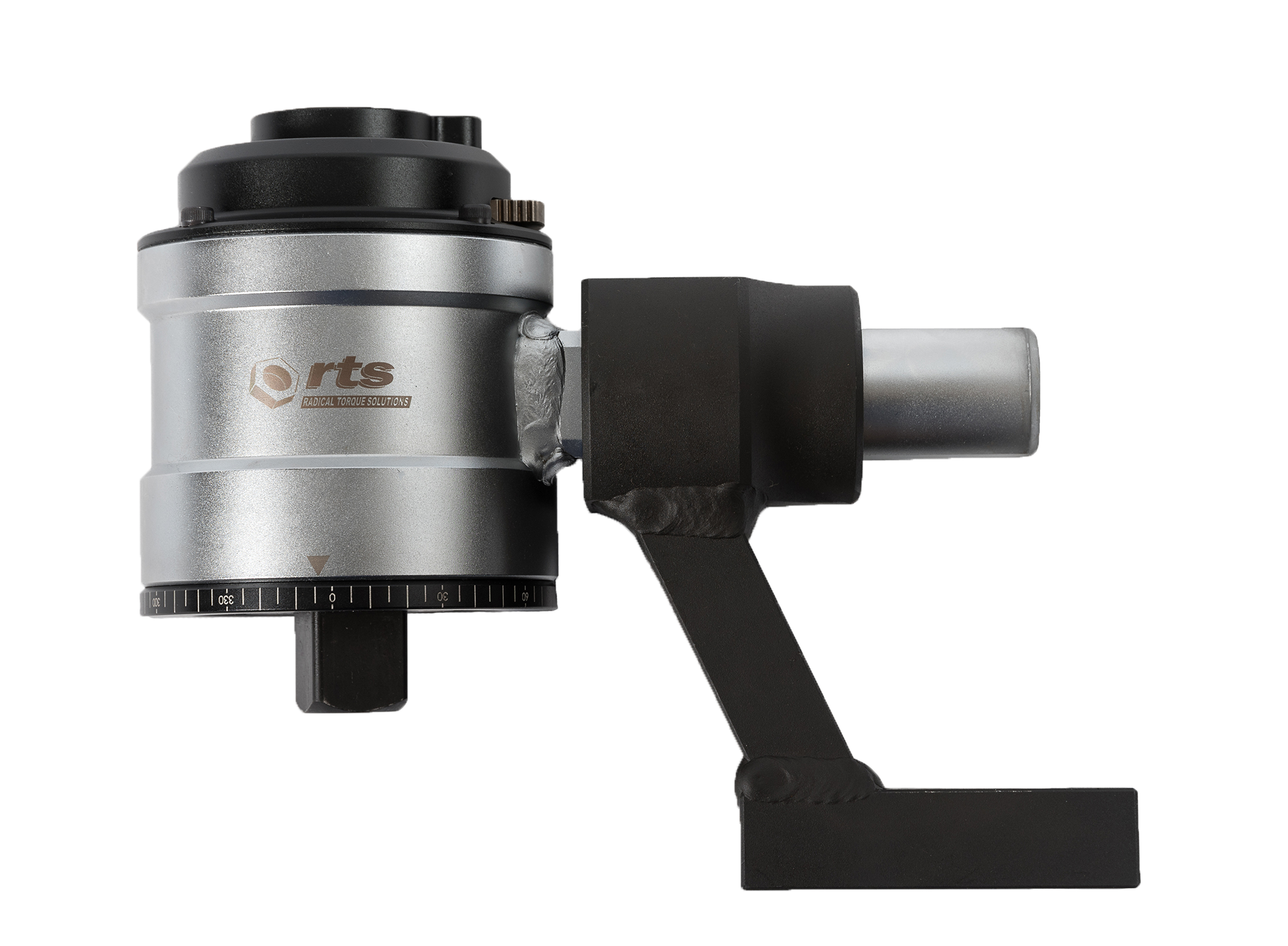

RTS Manual Torque Multiplier
RTS Manual Torque Multiplier
RTS Manual Torque Multiplier
RTS Manual Torque Multiplier
Key Features
- Planetary Gear System – High transmission efficiency and load capacity.
- Torque Multiplication – Accurate multiplication with certified conversion chart.
- Accuracy: ±5%
- Anti-Backlash Mechanism – Improves operator safety and control.
- Two Reaction Arms – Suitable for a wide range of applications.
- Durable Construction – Corrosion and abrasion-resistant finish.

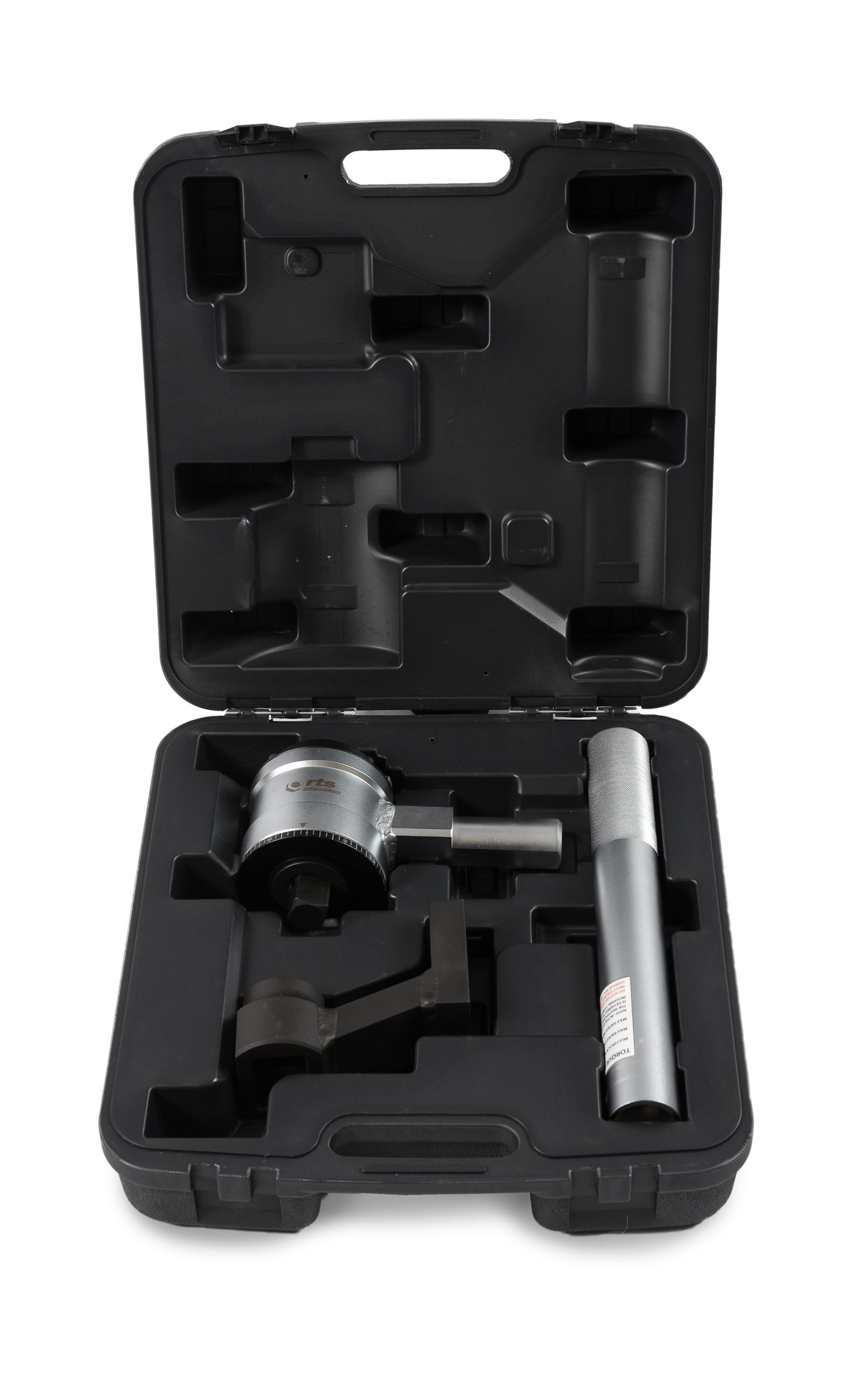

- Protective Carry Case – Supplied in a durable weather-resistant case.
- 12-Month Warranty
Torque Range: 1,106–3,319 ft-lb (1,500–4,500 Nm)
RTS Manual Torque Multiplier
Designed to increase torque output without the need for additional force, the RTS Manual Torque Multiplier provides a safe, accurate and efficient solution for high-torque bolting applications. Featuring a precision planetary gear mechanism, it delivers high transmission efficiency and consistent torque multiplication while reducing operator effort. Available in torque capacities from 1,500 to 4,500 Nm, each multiplier is supplied with reaction arms and a calibration chart for accurate torque calculation.
Product overview
Product overview
| Part No. | Model | Ratio | Square Drive IN | Square Drive OUT | Weight (Kg) | Height (mm) | Length (mm) | Depth (mm) |
|---|---|---|---|---|---|---|---|---|
| RTSM – 1500 | TORQUE MULTIPLIER 1500Nm | 5:1 | ½” | ¾” | 6.48 | 125 | 170 | 105 |
| RTSM – 2700 | TORQUE MULTIPLIER 2700Nm | 5:1 | ¾” | 1” | 6.48 | 125 | 170 | 105 |
| RTSM – 3000 | TORQUE MULTIPLIER 3000Nm | 15.5:1 | ½” | 1” | 11.5 | 160 | 245 | 110 |
| RTSM – 4500 | TORQUE MULTIPLIER 4500Nm | 26:1 | ½” | 1” | 13 | 160 | 245 | 110 |
